Step1 Remove the front cover
For the power terminal and control terminal wiring, the front cover must be
disassembled in order. Note that the disassembling procedure of front cover and
control terminal cover may vary depending on the product group. Disassemble each
cover in the following order:

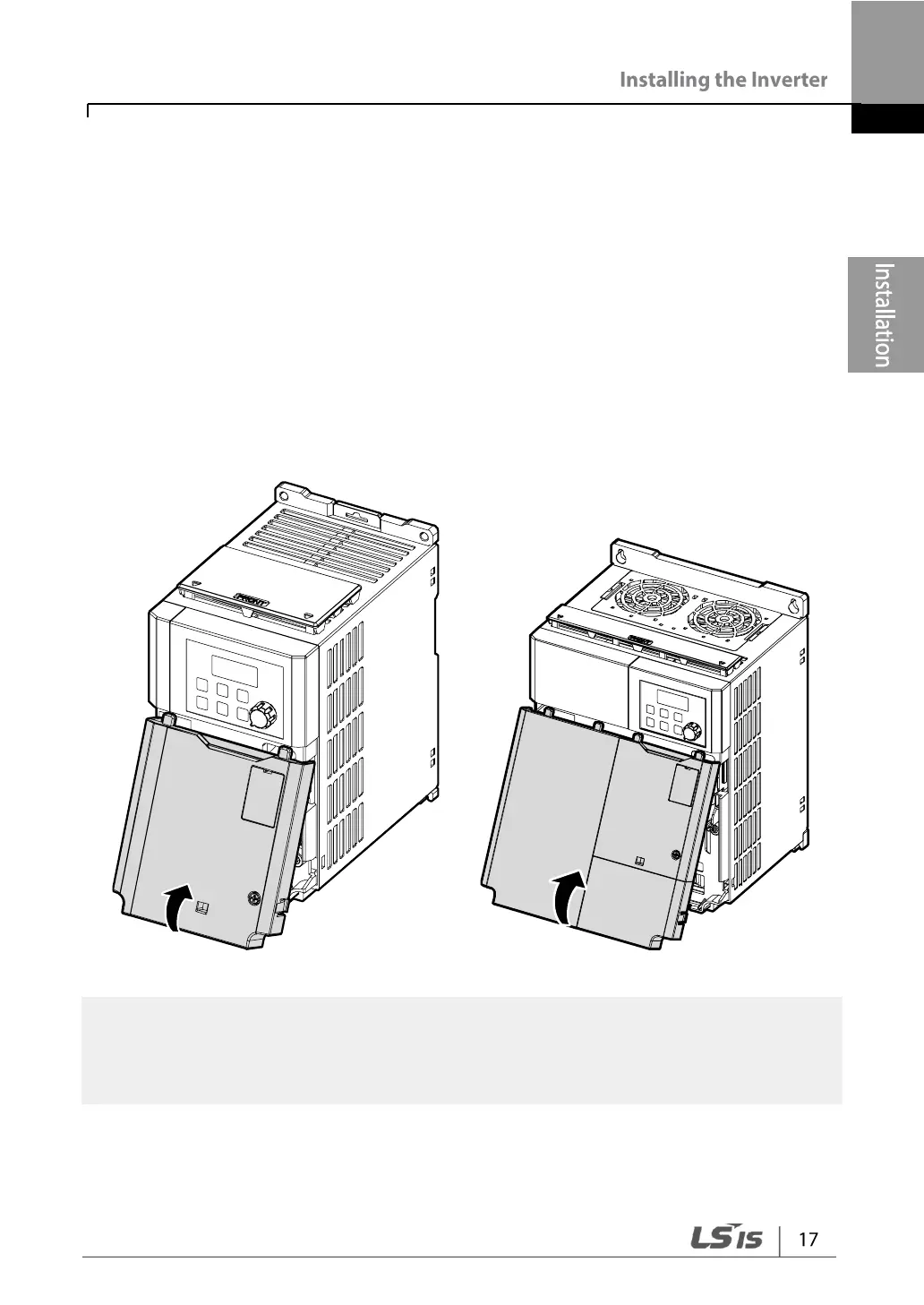

1 Loosen the bolt that secures the front cover (R). Push and hold the latch on the
right side of the cover. Then remove the cover by lifting it from the bottom and
moving it away from the front of the inverter.
If you have installed the remote keypad, remove the plastic cover under the lower-right
part of the control terminal cover, and then connect the remote keypad signal to the RJ-45
connector.
