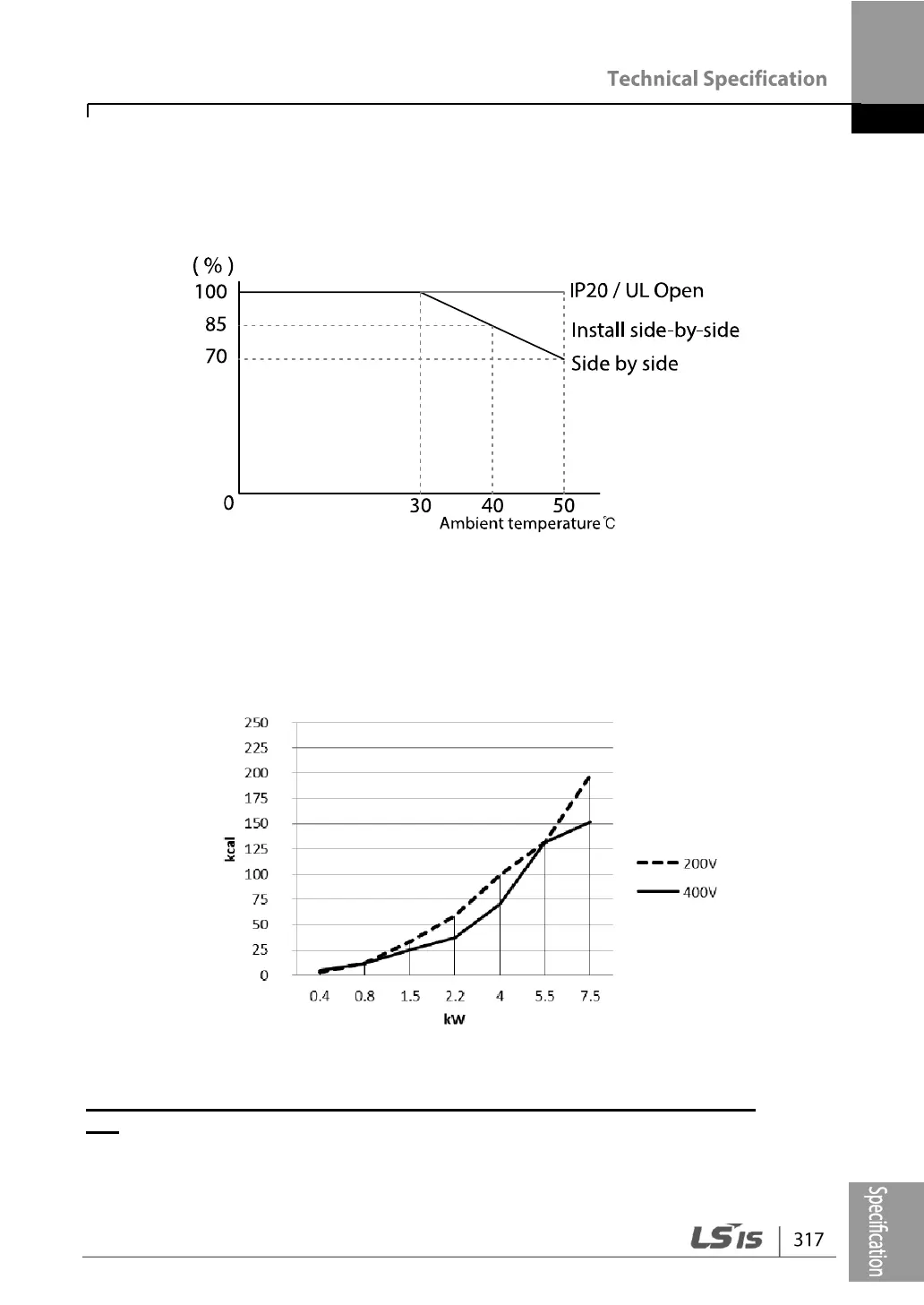

Ambient Temperature/Installation Method
The constant-rated current of the inverter is limited based on the ambient temperature
and installation type. Refer to the following graph.
11.9 Heat Emission
The following graph shows the G100 inverters’ heat emission characteristics (by
product capacity).
Heat emission has been measured based on the room temperature when the carrier
frequency of inverter is set as default. For more information on carrier frequency, refer to
5.15 Operational Noise Settings (Change of Carrier Frequency Settings) on page
150.
