LSIS G100 User Manual

Group
Code
Name
Setting
Setting Range
Unit
voltage (%)
14
V1 Maximum input
voltage
-10.00
-12.00–0.00 V
V
15
V1 output at Maximum
voltage (%)
-100.00
-100.00–0.00%
%
Rotational Directions for Different Voltage Inputs
Operation
command
Input voltage
0–10 V
-10–0 V
FWD
Fwd
Rev
REV
Rev
Fwd
-10–10 V Voltage Input Setting Details
Code and
Features
Description
In.12 V1– volt
x1–
In.15 V1– Perc
y2

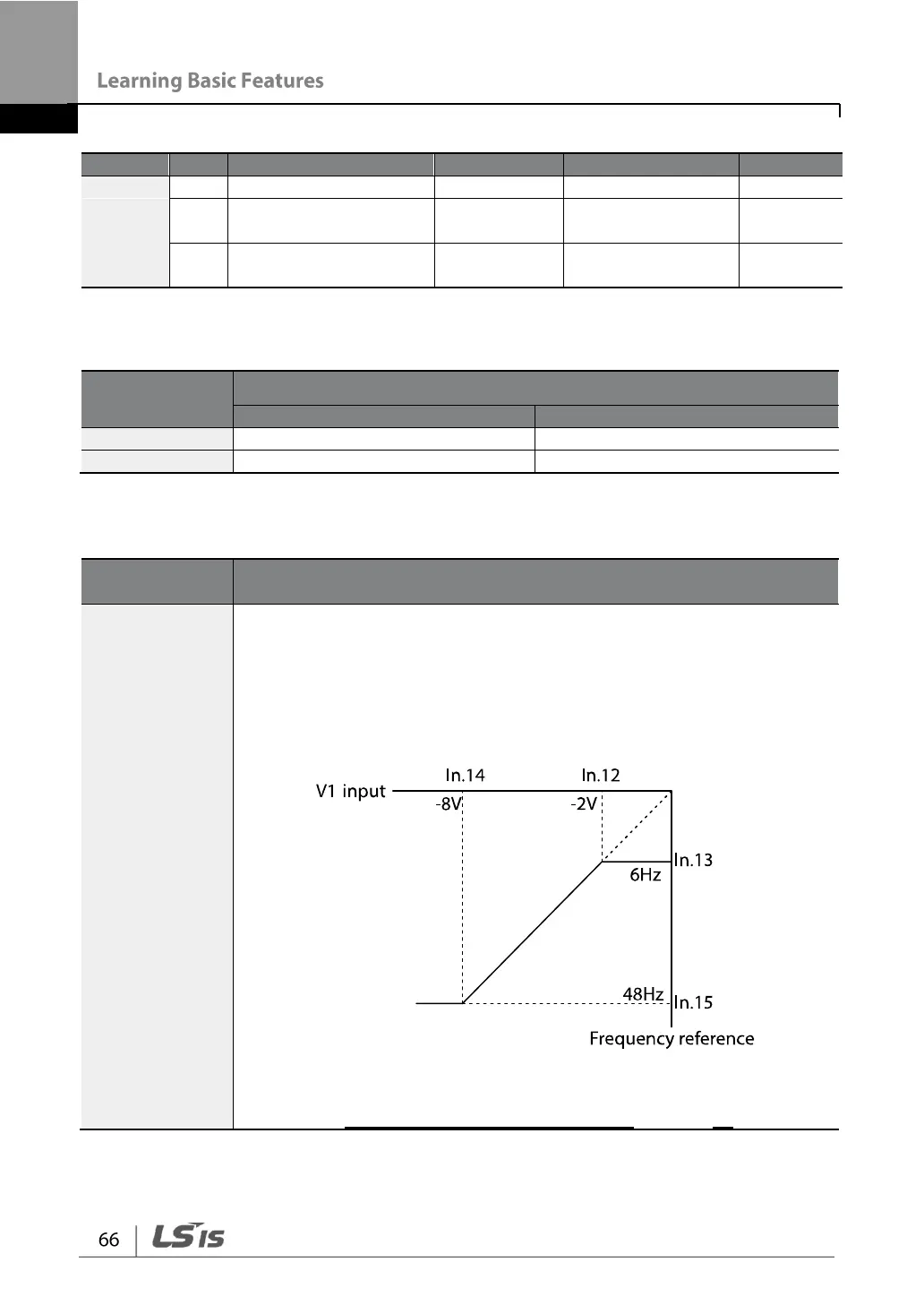

Sets the gradient level and off-set value of the output frequency in
relation to the input voltage. These codes are displayed only when
In.06 is set to 1 (bipolar).
For example, if the ln.12 code is set to -2 V, In.13 code is set to 10%,
In.14 code is set to -8 V, and In.15 code is set to 80%, the output
frequency will vary within the range of 6–48 Hz.
For details about the 0–+10 V analog inputs, refer to the code
descriptions In.08 V1 volt x1–In.11 V1 Perc y2 on page 63.
