LSIS G100 User Manual

Acc/Dec Time Setup via Multi-function Terminals – Setting Details
Code and
Features
Description
bA. 70–82
Acc Time 1–7
Set multi-step acceleration time 1–7.
bA.71–83
Dec Time 1–7
Set multi-step deceleration time 1–7.
In.65–69
Px Define
(P1–P5)
Choose and configure the terminals to use for multi-step Acc/Dec time
inputs.
Configuration
Function
11
XCEL-L
Acc/Dec command-L
12
XCEL-M
Acc/Dec command-M
49
XCEL-H
Acc/Dec command-H
Acc/Dec commands are recognized as binary code inputs and will
control the acceleration and deceleration based on parameter values
set with bA.70–82 and bA.71–83.

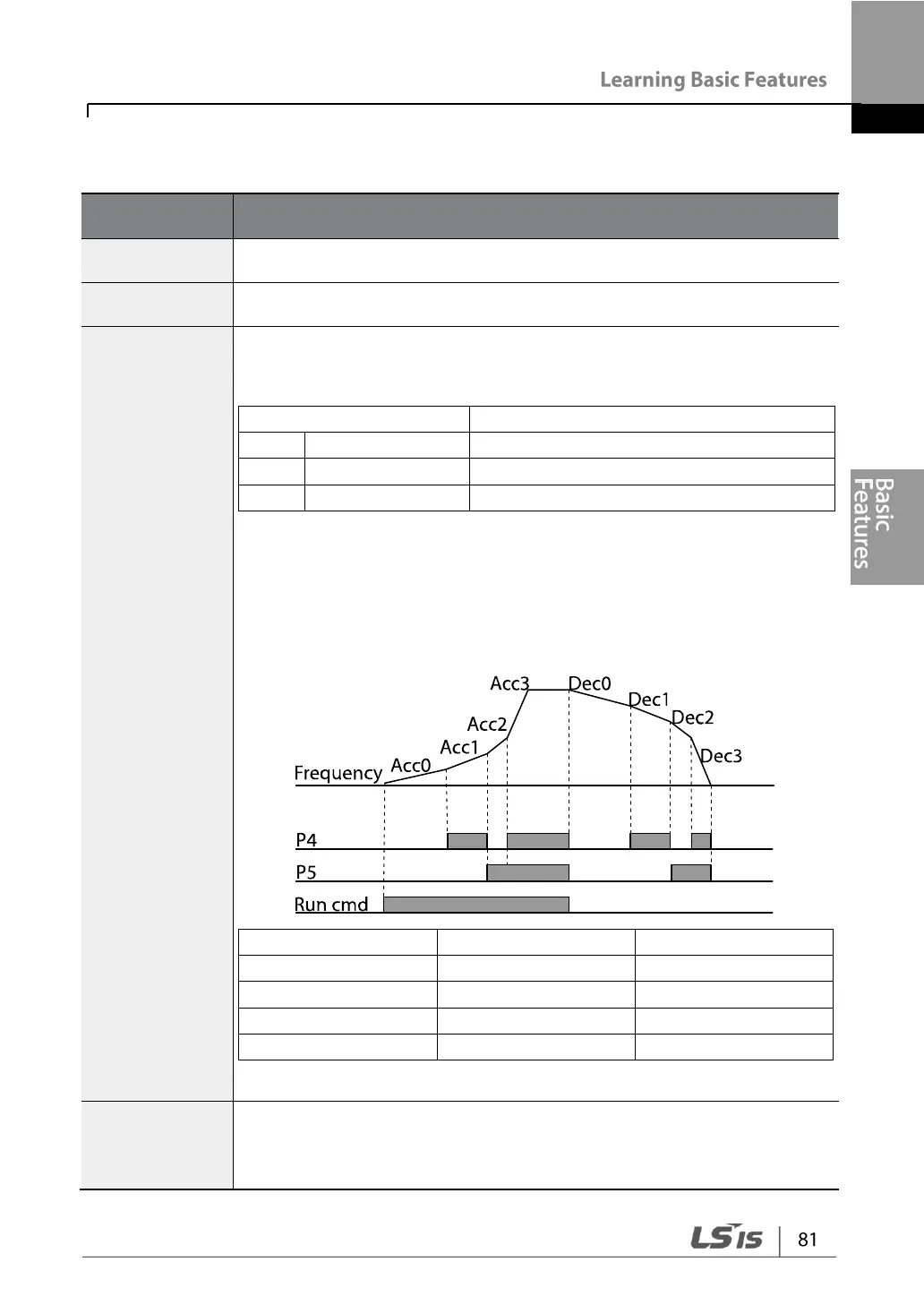

If, for example, the P4 and P5 terminals are set as XCEL-L and XCEL-
M respectively, the following operation will be available.
Acc/Dec time
P5
P4
0
-
-
1
-

2

-
3


[Configuration of multi-function terminals P4 and P5]
In.89 In Check
Time
Set the time for the inverter to check for other terminal block inputs.
In.89 is set to 100 ms and a signal is supplied to the P4 terminal, the
inverter searches for other inputs over the next 100 ms. When the time
expires, the Acc/Dec time will be set based on the input received at P4.
