MacDon R113 - Connecting Electrical Wiring Harness

214713 99 Revision A
5.3.4 Connecting Electrical Wiring Harness
1003604
A
B
C

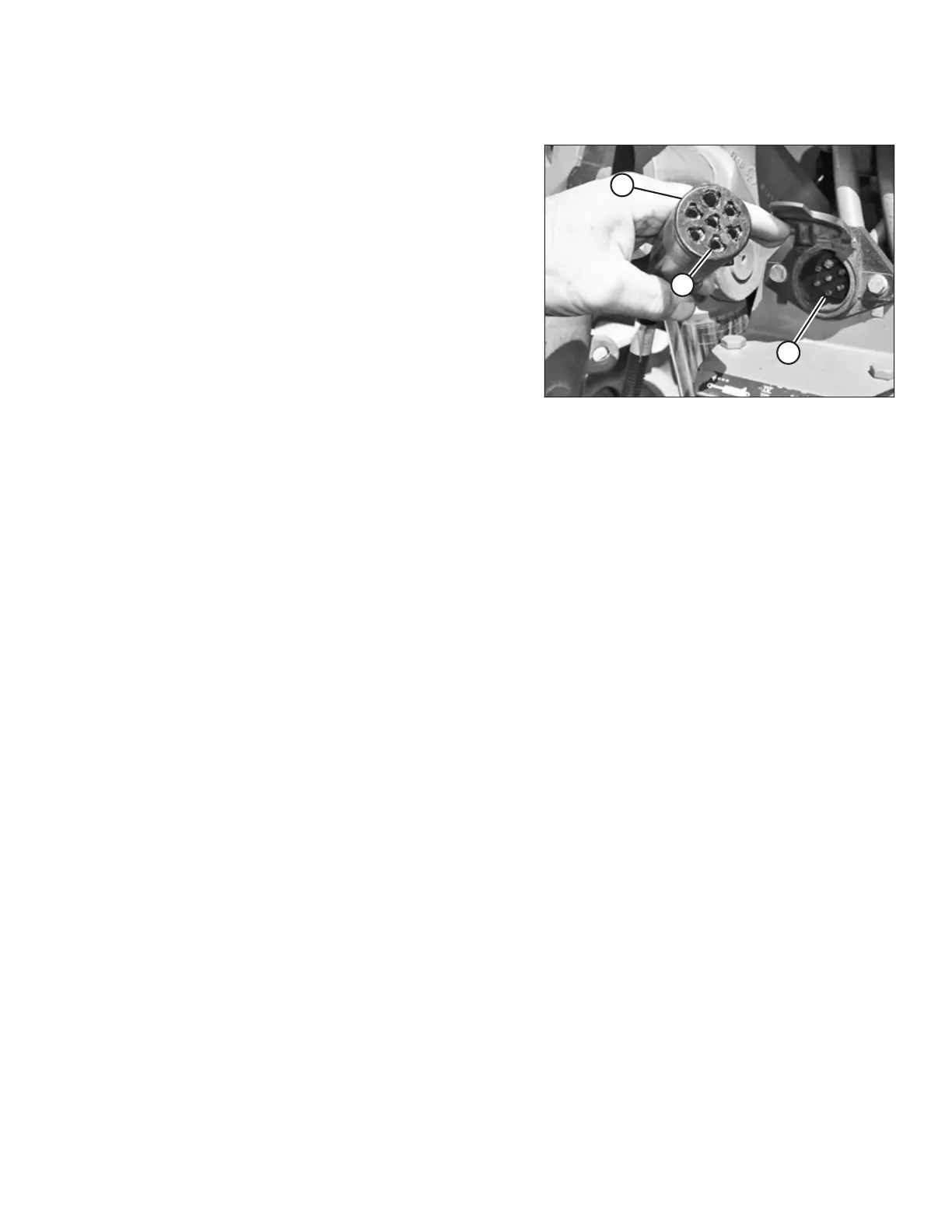

Figure 5.16: Electrical Wiring Harness
and Receptacle
1. Ensure that pin #4 (A) in the tractor receptacle is NOT
continuously energized (refer to your tractor operator’s
manual). If necessary, remove the appropriate fuse.
IMPORTANT:
Older model tractors may have pin #4 (A) energized as
an accessory circuit; however, pin position (B) is used
to supply power to the disc mower brake lights.
2. Connect the disc mower wiring harness connector (C)
to the tractor receptacle.
NOTE:
The connector is designed to fit tractors equipped with a
round seven-pin receptacle (SAE J560).
SETTING UP THE TRACTOR
