MacDon R113 - Installing Road Friendly Transport Wheels

214713 89 Revision A
4.10 Installing Road Friendly Transport
™™
Wheels
1011184
A
B

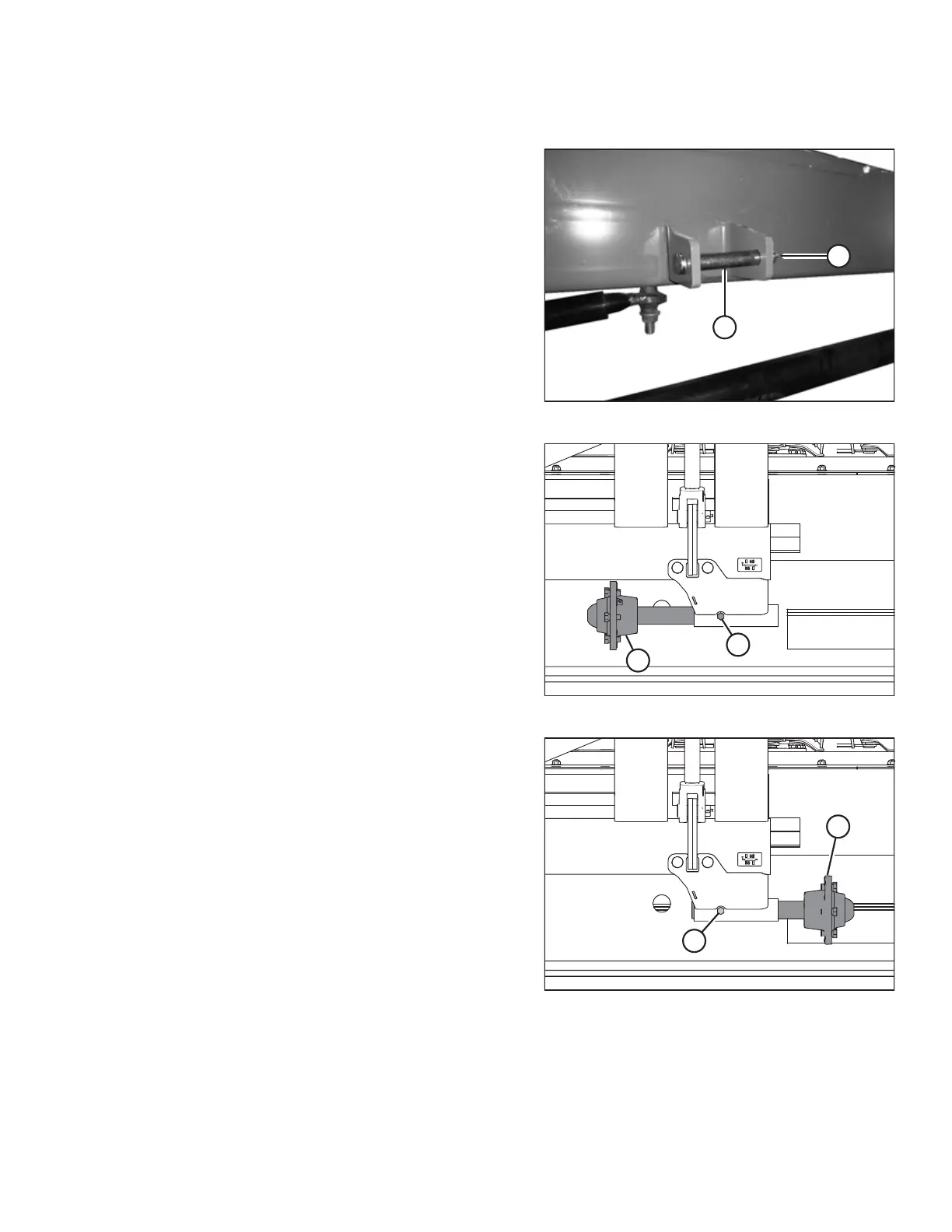

Figure 4.77: Latch Pin
1. Retrieve clevis pin (A) and cotter pin (B) from shipping
bag and install onto hitch bracket at side of hitch.
1015155
A
B
Figure 4.78: Axle Assembly Relocation
2. Remove bolt (B) holding axle assembly (A) in place.
3. Slide axle assembly (A) out of the support.
1015156
A
B
Figure 4.79: Axle Assembly Relocation
4. Install the axle assembly (A) into the opposite side of
the support as shown.
5. Install bolt (B) and nut to secure it. Torque to 68 Nm
(50 lbf·ft).
6. Remove wheel bolts from the hub (A).
ASSEMBLING THE DISC MOWER (FACTORY-INSTALLED TRANSPORT)
