214713 152 Revision A
7.19 Checking and Adjusting the Cam on the Transport Deploy/
Swing Mechanism
1014931
A

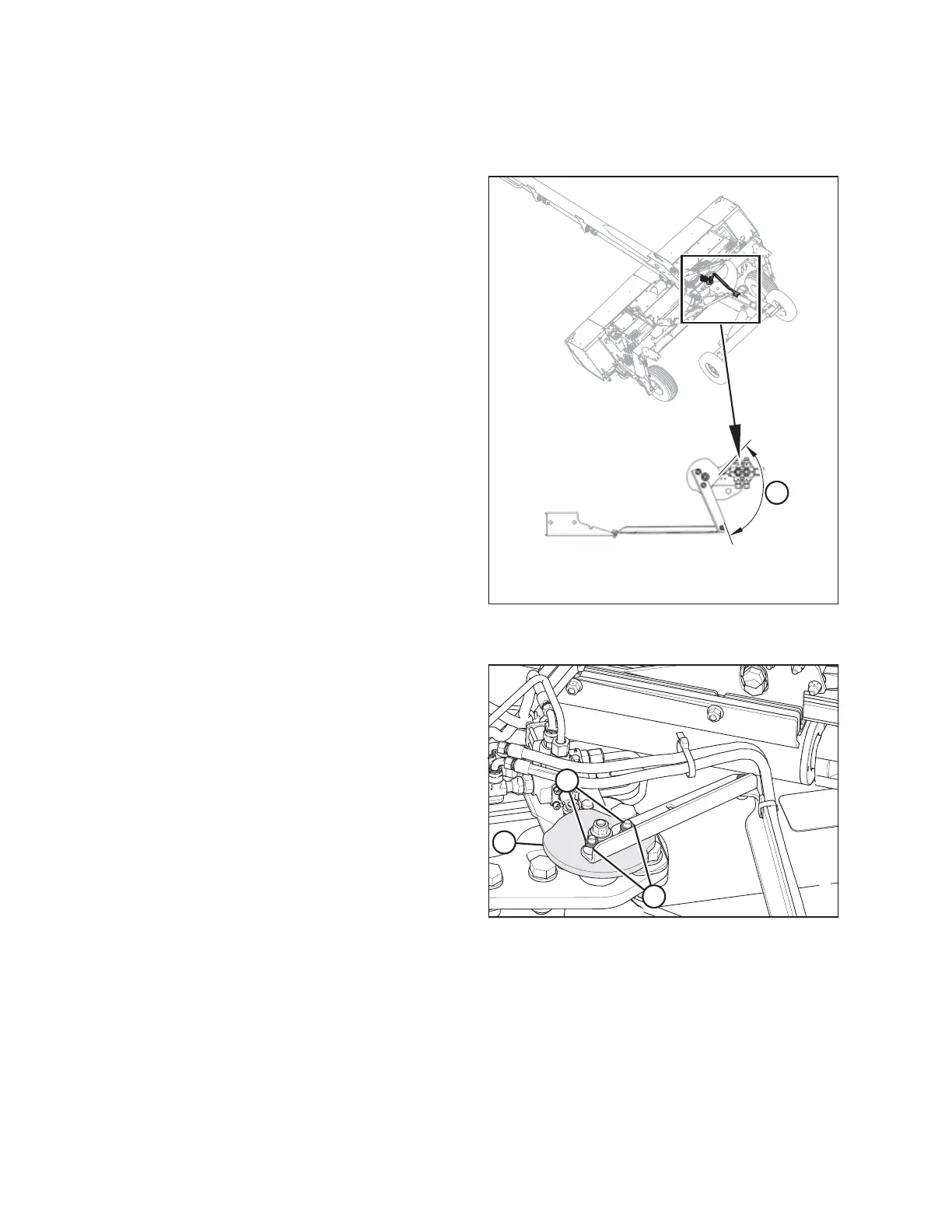

Figure 7.40: Transport Deploy/Swing
Mechanism Assembly
The cam angle (A) on the transport deploy/swing
mechanism assembly is factory-set to 112 degrees. It may
be necessary to adjust the cam angle if the Road Friendly
Transport
™
does not properly deploy. When the system is
functioning properly, the header should start to rotate as the
transport wheels reach the end of their travel (beneath the
header).
1017137
A
B
C
Figure 7.41: Transport Deploy/Swing
Mechanism Assembly
1. Loosen two M10 jam nuts (A), two M10 hex flange
nuts (B), and rotate cam plate (C) to achieve the proper
angle. Reposition cam as follows:
• Rotate COUNTERCLOCKWISE if the transport tires
deploy too close to the header tires, before the
transport wheels are fully under the header.
• Rotate CLOCKWISE if the tires go underneath
the header, but the header does not begin to rotate.
2. Tighten two M10 hex flange nuts (B) and two M10 jam
nuts (A).
3. To test the transport deploy/swing mechanism. Refer to
• 8.6.2 Converting from Transport to Field Mode (With
Road Friendly Transport
™
), page 166
• 8.6.1 Converting from Field to Transport Mode (With
Road Friendly Transport
™
), page 160
PERFORMING PREDELIVERY CHECKS
