Chapter 6: Lubricating the Disc Mower
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
The disc mower has been lubricated at the factory. However, you should lubricate the disc mower prior to delivery
to offset the effects of weather during outside storage and transport, and to familiarize yourself with the machine.
Unless otherwise specified, use high-temperature, extreme-pressure (EP2) performance grease with 1% max
molybdenum disulphide (NLGI grade 2) lithium base.
6.1 Opening Driveshields
CAUTION
Do NOT operate the machine without the driveshields in place and secured.

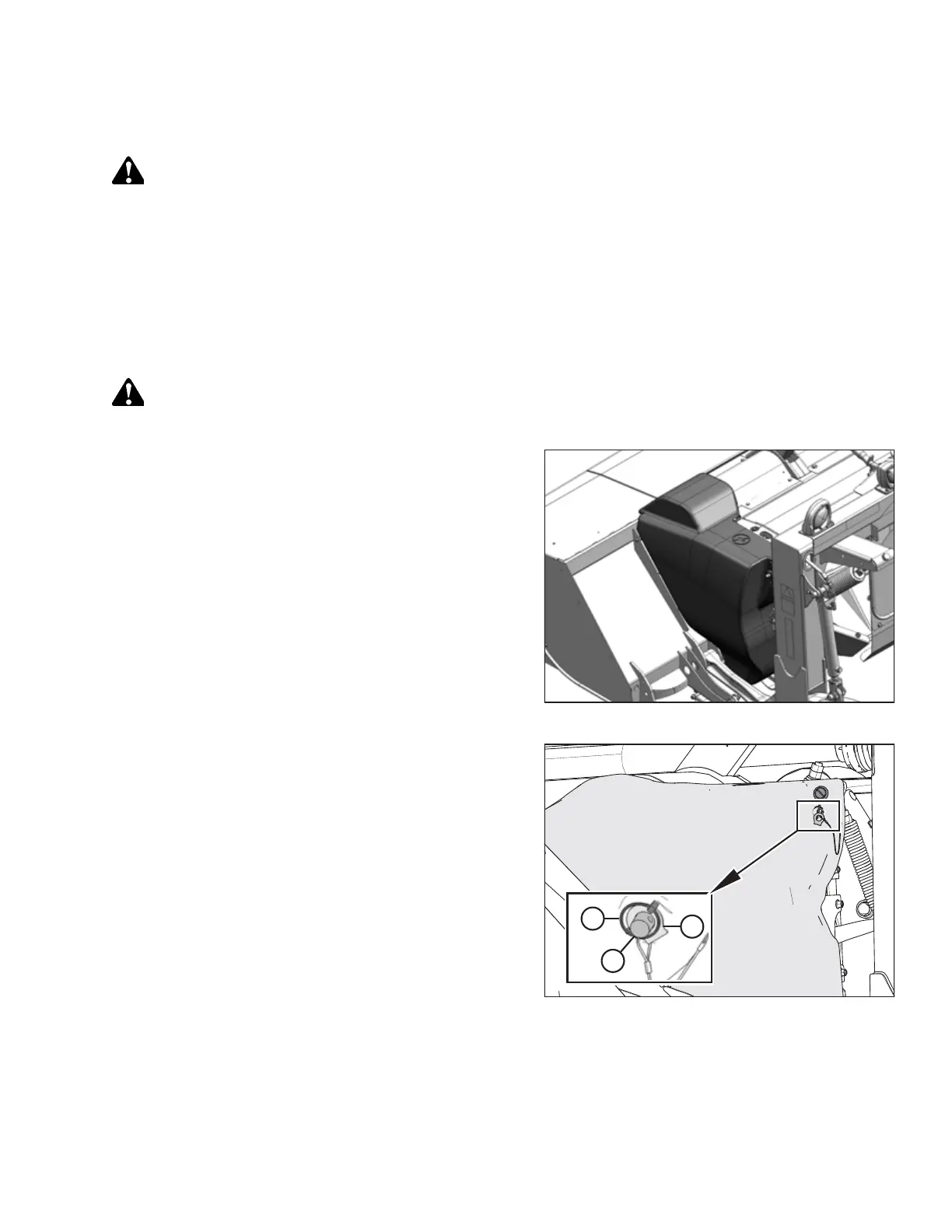

Figure 6.1: Left Driveshield
NOTE:
Images shown in this procedure are for left driveshield—
right driveshield is similar.
Figure 6.2: Left Driveshield
1. Remove lynch pin (A) and tool (B) from pin (C).
