5.6 Setting up Forming Shields
Each type of conditioner uses a different configuration for the swath forming shield. Refer to the applicable
instruction for the conditioner supplied with the machine.
If a finger conditioner is installed, continue to 5.6.1 Setting up Forming Shields for Finger Conditioner, page 104.
If a roll conditioner is installed, continue to 5.6.2 Setting up Forming Shields for Roll Conditioner, page 109.
If no conditioner is installed, continue to 5.8 Discharge Shield (No Conditioner), page 112.
5.6.1 Setting up Forming Shields for Finger Conditioner
NOTE:
Transport not shown in illustrations for clarity.
1018554
A
B
A
A

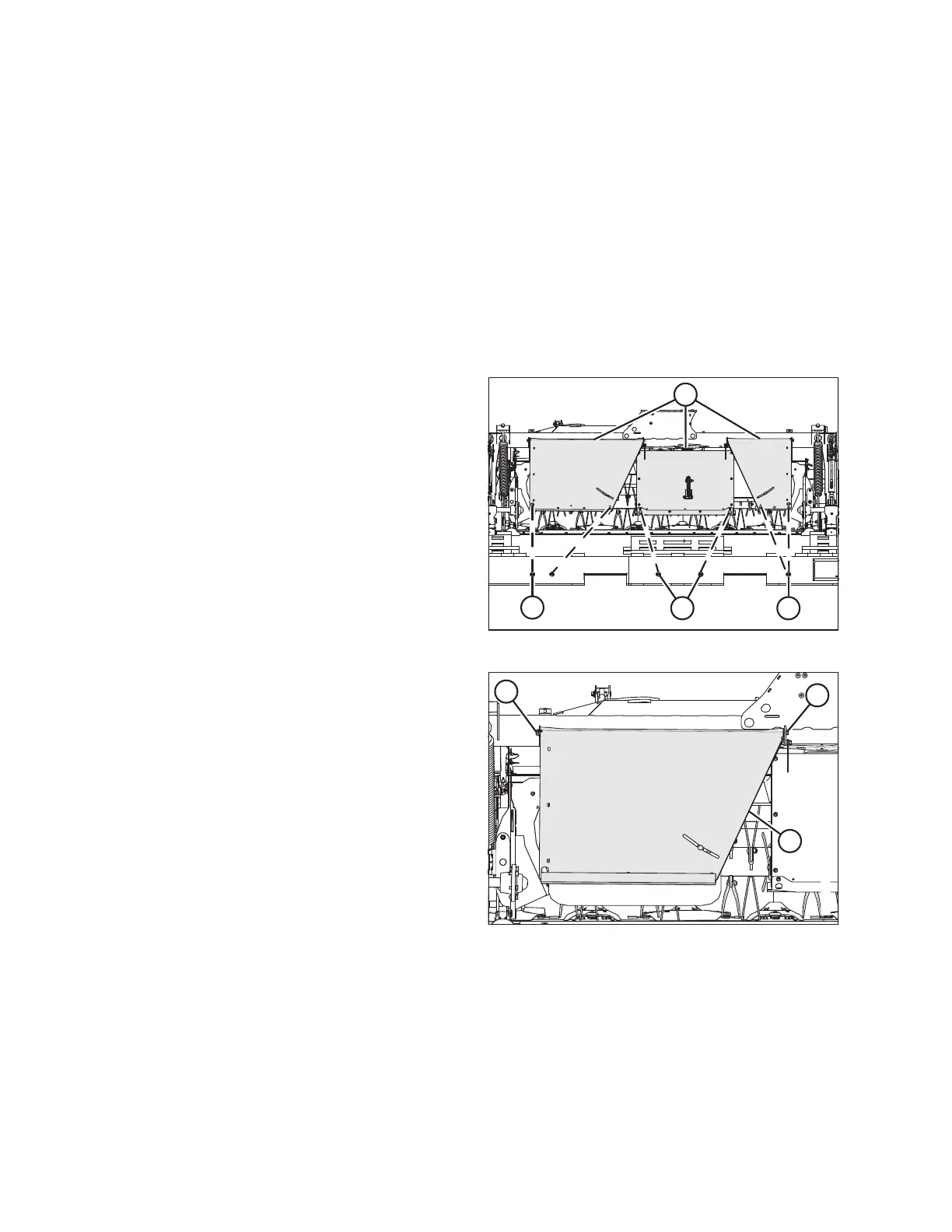

Figure 5.24: Forming Shields Strapped to Pallet
1. Before setting up the forming shields, convert the
header to field mode. Refer to 8.6.2 Converting from
Transport to Field Mode (With Road Friendly
Transport
™
), page 166.
2. Remove shipping wires (A) securing forming shield
covers (B) to pallet.
1014990
A
B
C
Figure 5.25: Outboard Top Cover
3. Support shield (C), remove two bolts at locations (A)
and (B), and remove the shield.
