11.3 Disengaging Locks
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, stop engine, remove
key, and engage header lift cylinder lock-out valves before going under machine for any reason.
1023736
1023736
A

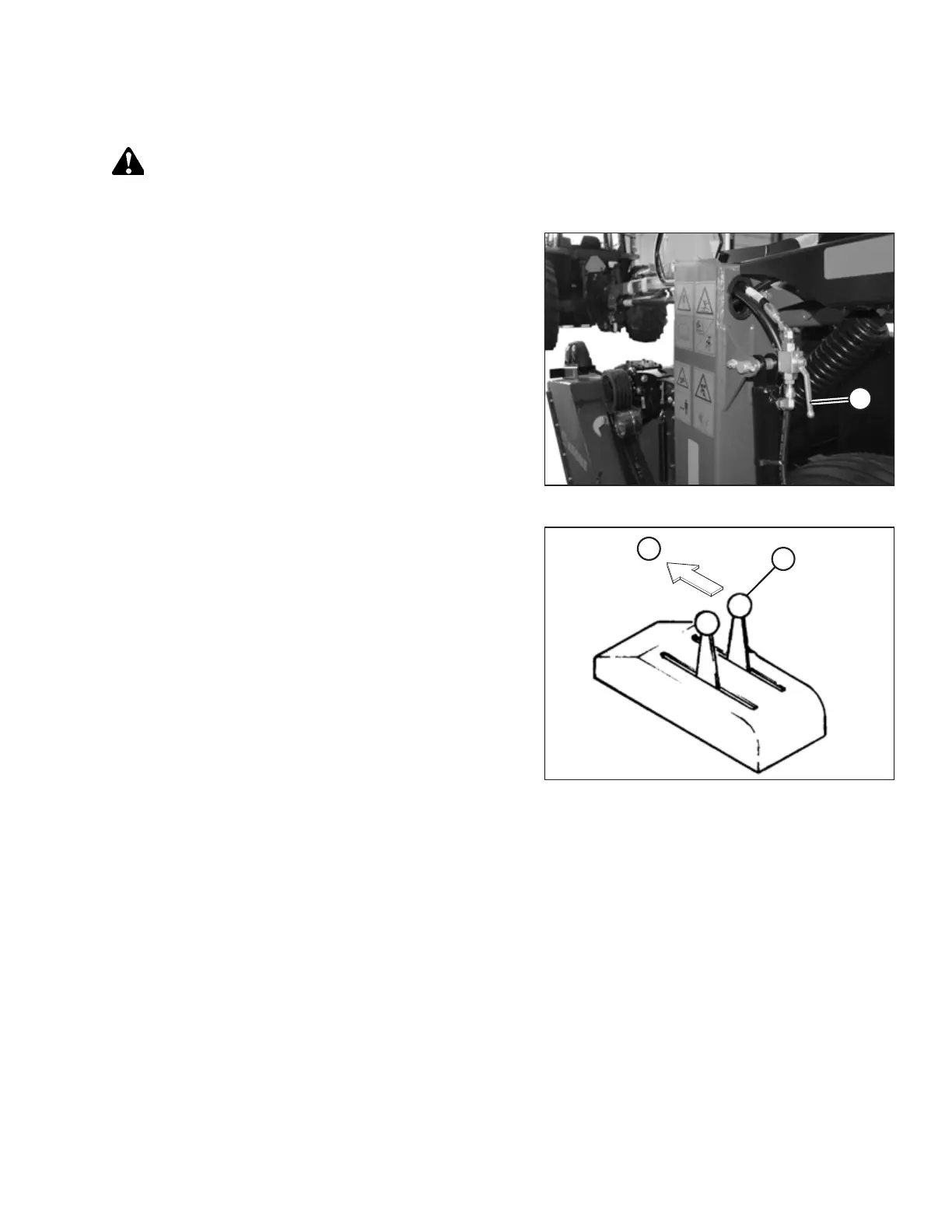

Figure 11.4: Lift Cylinder Lock-Out Valve
1. Open the lock-out valve (A) on each lift cylinder by
turning the handle to the open position (in line with
the hose).
1010601
A
B
Figure 11.5: Tractor Cylinder Control Lever
2. Move cylinder control lever (A) forward to position (B) to
lower machine.
