MacDon R113 - Chapter 5: Setting up the Tractor; Adjusting the Drawbar

214713 91 Revision A
Chapter 5: Setting up the Tractor
This section describes the tractor and drawbar adjustment requirements.
5.1 Adjusting the Drawbar
CAUTION
Shut off tractor, engage parking brake, and remove key before working around hitch.
1003884
A
B
C
X
Y
Z

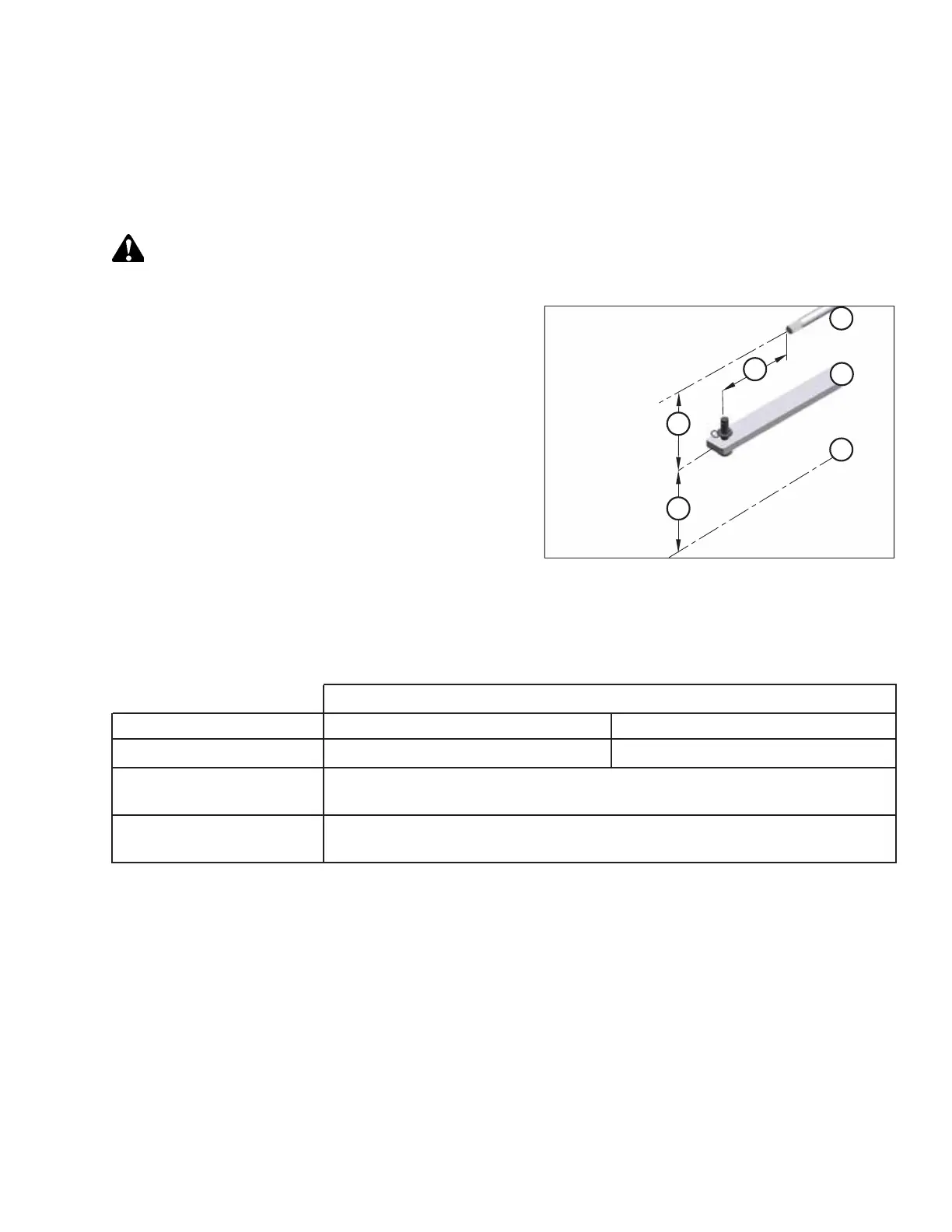

Figure 5.1: Tractor Drawbar Adjustments
A - PTO B - Tractor Drawbar
C - Ground X - Dimension X
Y - Dimension Y Z - Dimension Z
1. Adjust tractor drawbar to meet the specifications
listed in Table 5.1, page 91.
2. Secure the tractor drawbar so the hitch pinhole is
directly below the driveline.
Table 5.1 SAE Standard A482 Specifications
1000 rpm Power Take-Off
Dimension
1-3/8 in. Diameter 1-3/4 in. Diameter
X
406 mm (16 in.) 508 mm (20 in.)
Y
200–350 mm (7-7/8–13-3/4 in.)
203 mm (8 in.) recommended
Z
330–432 mm (13–17 in.)
406 mm (16 in.) recommended
