MacDon R113 - Attaching Hitch to Carrier

214713 12 Revision A
3.2 Attaching Hitch to Carrier
1011361
A

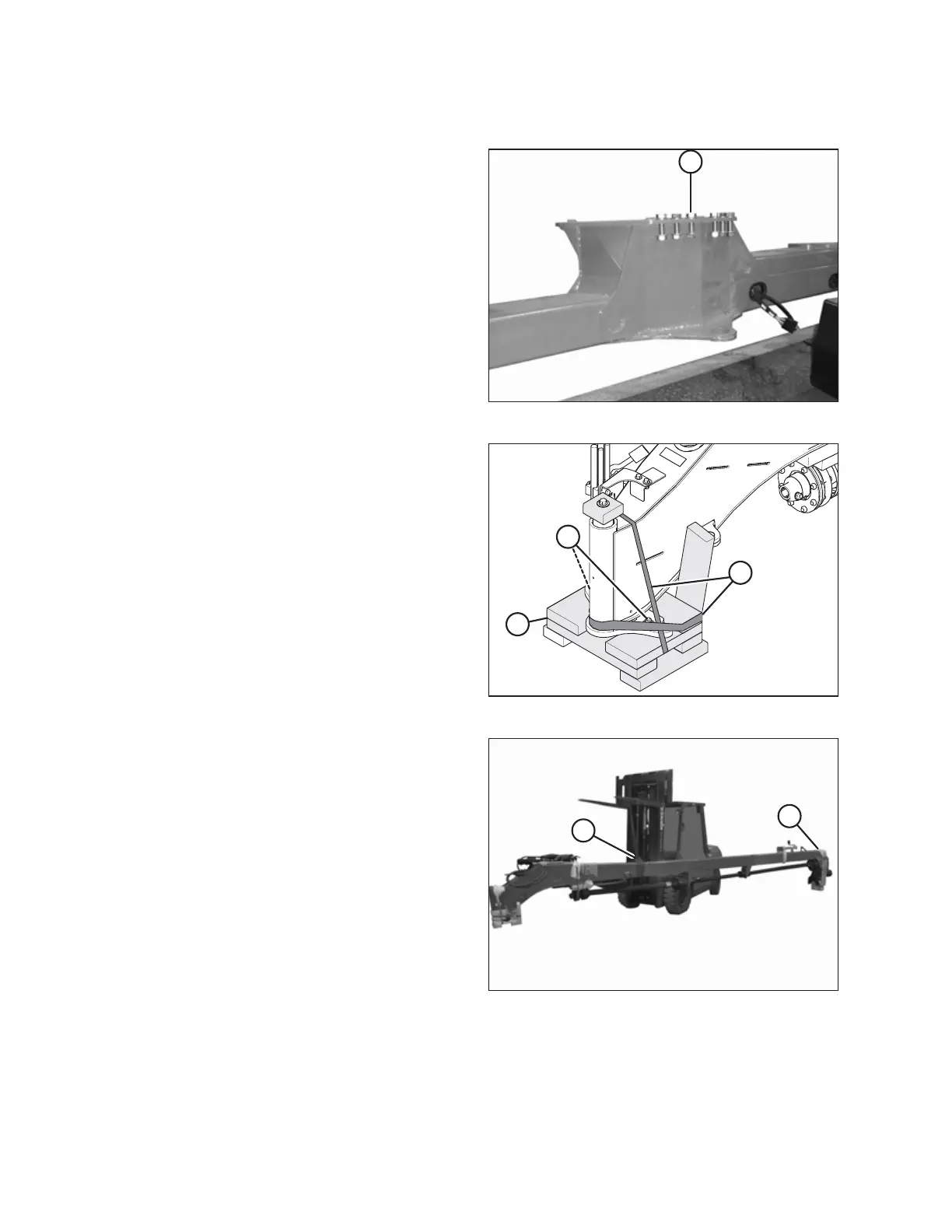

Figure 3.8: Carrier
1. Remove M20 bolts (A), washers, and nuts from carrier
at the hitch attachment location. Retain bolts, washers,
and nuts.
1013890
A
B
C
Figure 3.9: Hitch Packing
2. Cut banding (A) securing wood supports, then
remove supports (B).
3. Remove the two bolts securing wood support to hitch
pin (C). Discard bolts.
1012287
A
B
Figure 3.10: Lifting Hitch
4. Place sling (A) around the hitch frame. Adjust sling
position until hitch is balanced when lifting.
• R113: Approximately 2.7 m (106 in.) from the edge
of the tractor end of the hitch (B)
• R116: Approximately 3.5 m (138 in.) from the edge
of the tractor end of the hitch (B)
5. Raise the hitch approximately 610 mm (24 in.) off
the ground.
