MacDon R113 - Checking Cutting Angle

214713 130 Revision A
7.4 Checking Cutting Angle
1018529
A
B

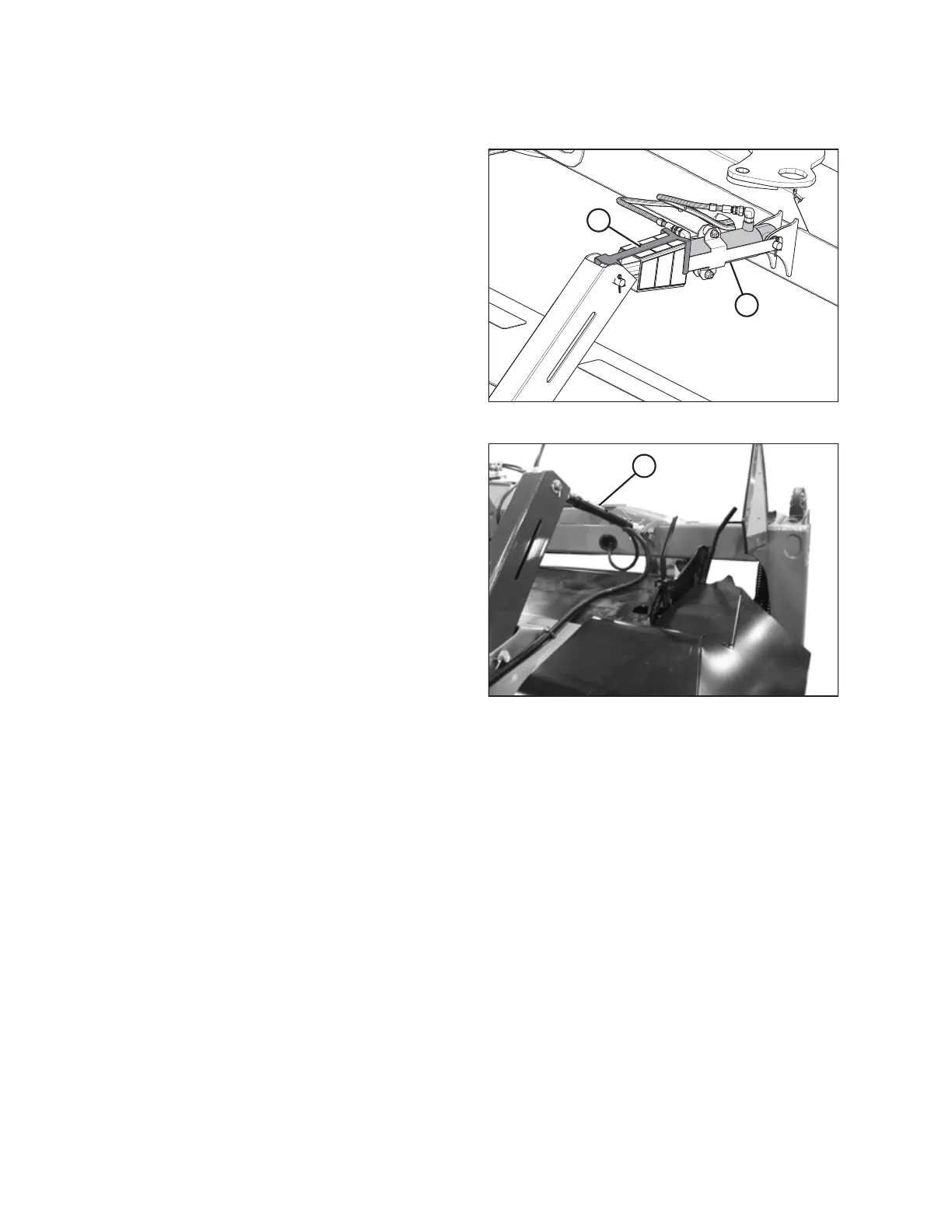

Figure 7.6: Hydraulic Center-Link
For a disc mower equipped with a hydraulic center-link (A),
the mid-point for header angle is indicated with the indicator
bars (B) in the center (orange) of the indicator decal.
1010814
A
Figure 7.7: Mechanical Center-Link
For a disc mower equipped with a mechanical center-
link (A), the mid-point for header angle is the middle of the
adjustment range on the link.
PERFORMING PREDELIVERY CHECKS
