214713 100 Revision A

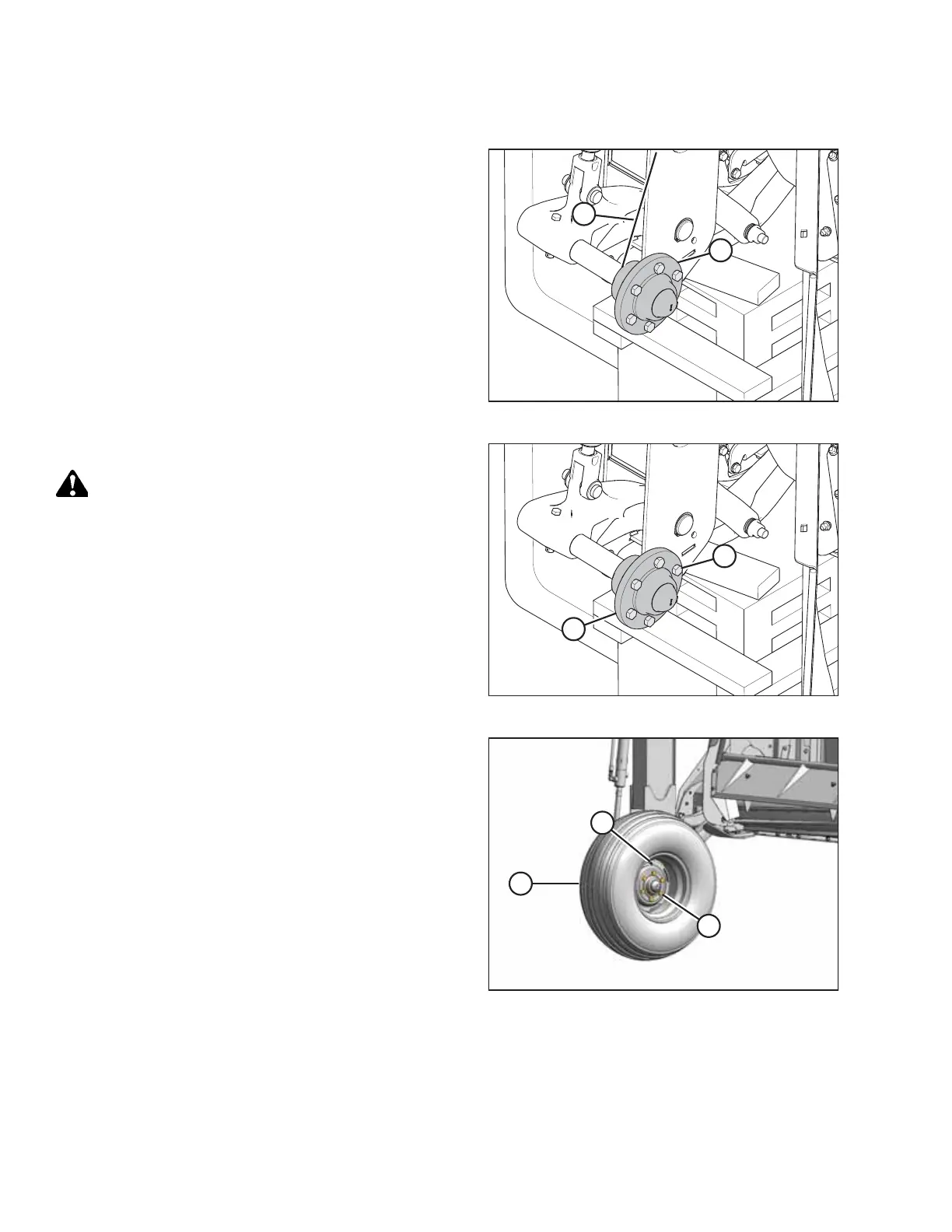

5.4 Installing Field Wheels
1016543
A
B
Figure 5.17: Wheel Spindle
1. Remove shipping strap (B) from wheel spindle (A).
Repeat on opposite side.
1015090
A
B
Figure 5.18: Wheel Spindle
2. Remove wheel bolts (A) from spindle (B).
CAUTION
When installing wheel, be sure to match countersunk
holes with bolt head profiles. Holes that are not
countersunk do NOT correctly seat the bolts.
1011503
A
B
C
Figure 5.19: Installing Wheel Bolts
3. Position wheel (A) on the spindle, install bolts (B), and
partially tighten.
IMPORTANT:
Be sure valve stem (C) points away from the
wheel support.
SETTING UP THE TRACTOR
