MacDon R113 - Closing Cutterbar Doors

214713 206 Revision A
11.4 Closing Cutterbar Doors
CAUTION
To avoid injury, keep hands and fingers away from corners of doors when closing.
1011300
A

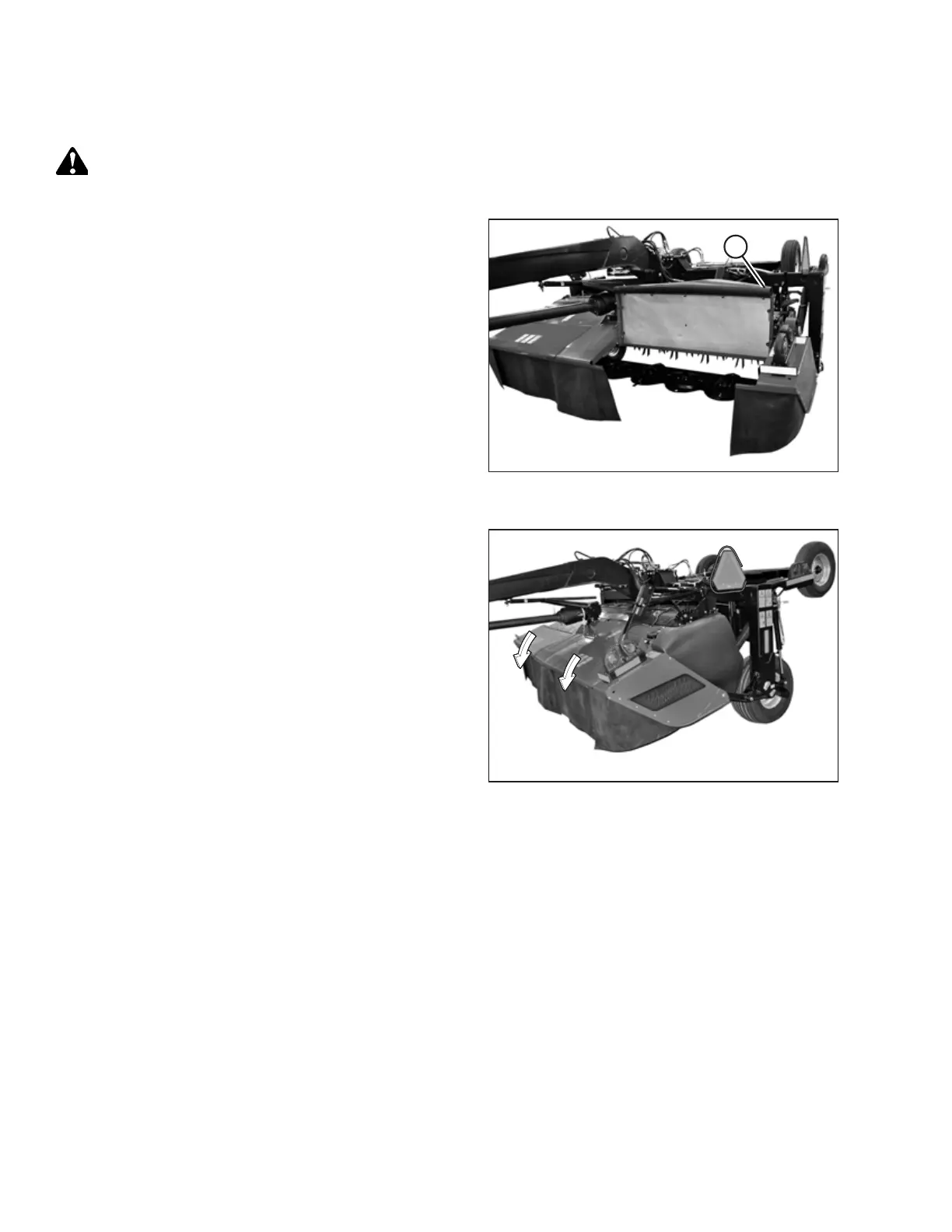

Figure 11.6: Left Side Cutterbar Door in Open
Position
1. Pull door (A) at top to close.
1010658
Figure 11.7: R113 Pull-Type Disc Mower
2. Ensure that curtains hang properly and completely
enclose cutterbar area.
REFERENCE
