MacDon R113 - Converting from Field Mode to Transport (Without Road Friendly Transport )

214713 159 Revision A
8.5 Converting from Field Mode to Transport (Without Road
Friendly Transport
™™
)
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1. Raise header.
2. Move header fully to the left side, then fully to the right side. Repeat this a couple of times.
3. Center the header.
4. Stop engine and remove key from ignition.
1023733
A

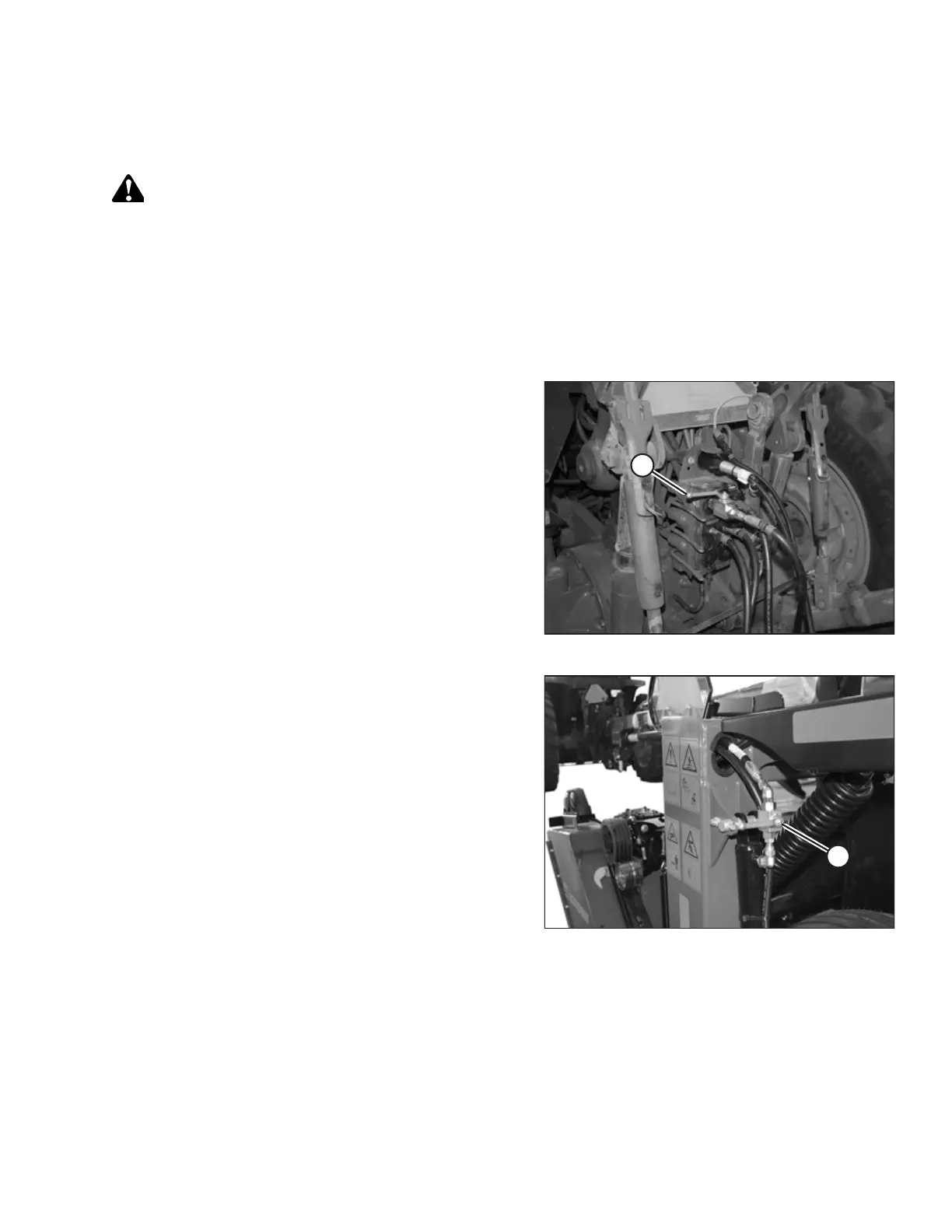

Figure 8.11: Steering Lock-Out Valve
5. Close the steering lock-out valve by turning handle (A)
to the closed position (90 degree angle to the hose).
10237341023734
A
Figure 8.12: Lift Cylinder Lock-Out Valve
6. Close the lift cylinder lock-out valve by turning
handle (A) to the closed position (90 degree angle to
the hose). Repeat on opposite side.
7. Disconnect all hydraulic hoses (refer to 5.3.3
Connecting Hydraulics, page 98), and disconnect
electrical wiring harness.
TRANSPORTING THE DISC MOWER
