MacDon R113 - Installing Cover

214713 87 Revision A
1023703
A
B
C

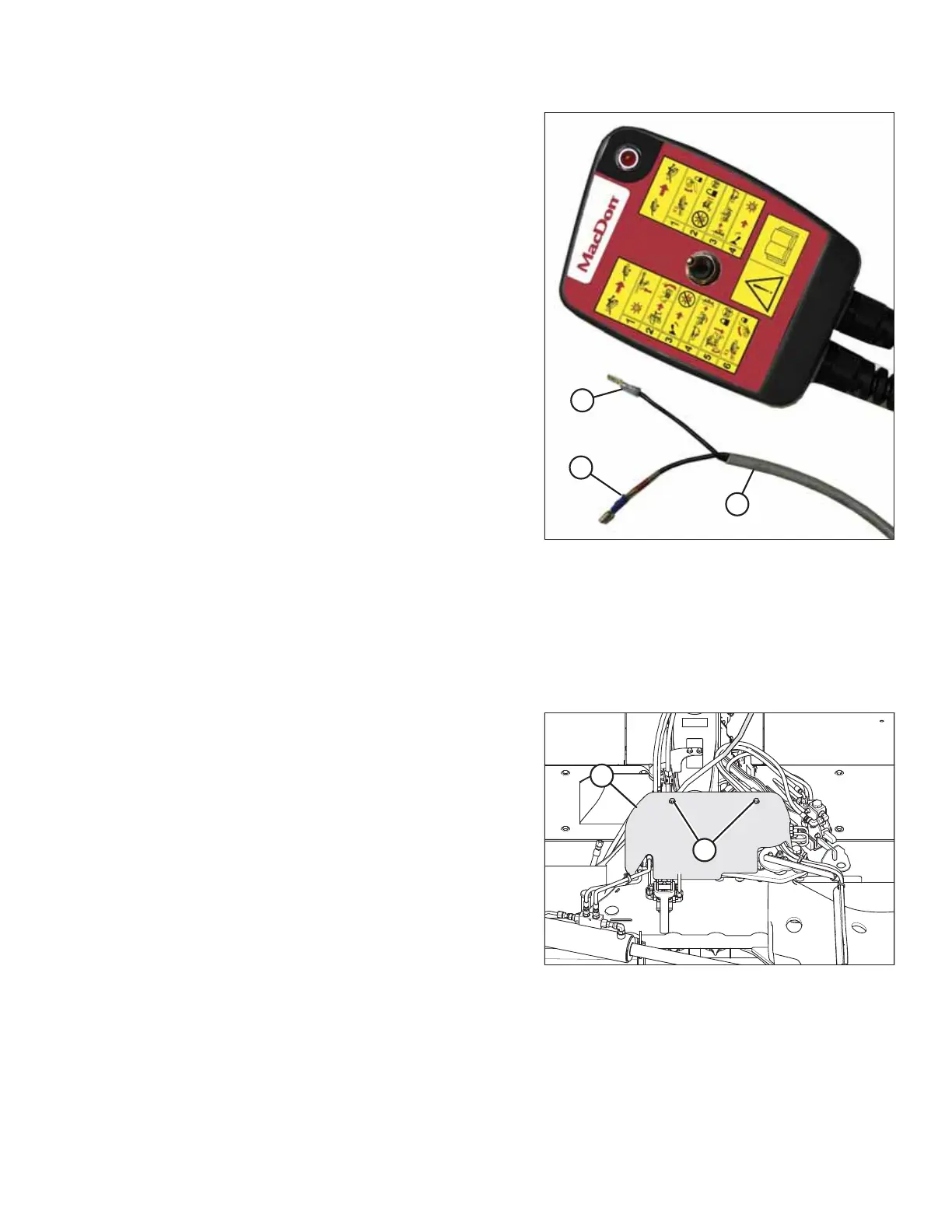

Figure 4.75: Remote Control
If your tractor does NOT have a three-pin auxiliary
power connection:
NOTE:
The remote control has internal protection which
prevents damage caused by incorrect wiring, short
circuits, or overload conditions.
5. Connect remote control wires (A) to the tractor’s power
supply:
• Connect wire (B) with no tag to tractor ground.
• Connect wire (C) with the red tag to tractor power.
NOTE:
If the red tag is missing, identify the power by locating
the wire with the number 1 printed on it. The ground
wire has a number 2 printed on it.
NOTE:
If connections are reversed, the lamp will not illuminate
when the toggle switch is in field mode. Try the
following to correct the issue:
• Check internal fuse may have blown.
• Check for short in wires to solenoid valve on header.
• Check for incorrect wire connections (reversed) at
the power supply or solenoid valve.
6. Place the remote control inside the tractor cab.
4.8.5 Installing Cover
1022610
A
B
Figure 4.76: Cover
1. Install cover (A) onto the cover support.
2. Install bolts (B). Torque to 55–65 Nm (41–48 lbf·ft).
ASSEMBLING THE DISC MOWER (FACTORY-INSTALLED TRANSPORT)
