214713 16 Revision A
3.3 Installing Tractor Mating Hitch to Carrier Hitch
Depending on disc mower configuration, refer to the applicable installation procedure:
• 3.3.1 Installing Drawbar Hitch, page 16
• 3.3.2 Installing Two-Point Hitch (Cat. II) Adapter, page 20
3.3.1 Installing Drawbar Hitch
If attaching the disc mower to a tractor with a drawbar hitch, proceed as follows. If attaching the disc mower to a
tractor with a two-point hitch, refer to 3.3.2 Installing Two-Point Hitch (Cat. II) Adapter, page 20.
1011296
B
A

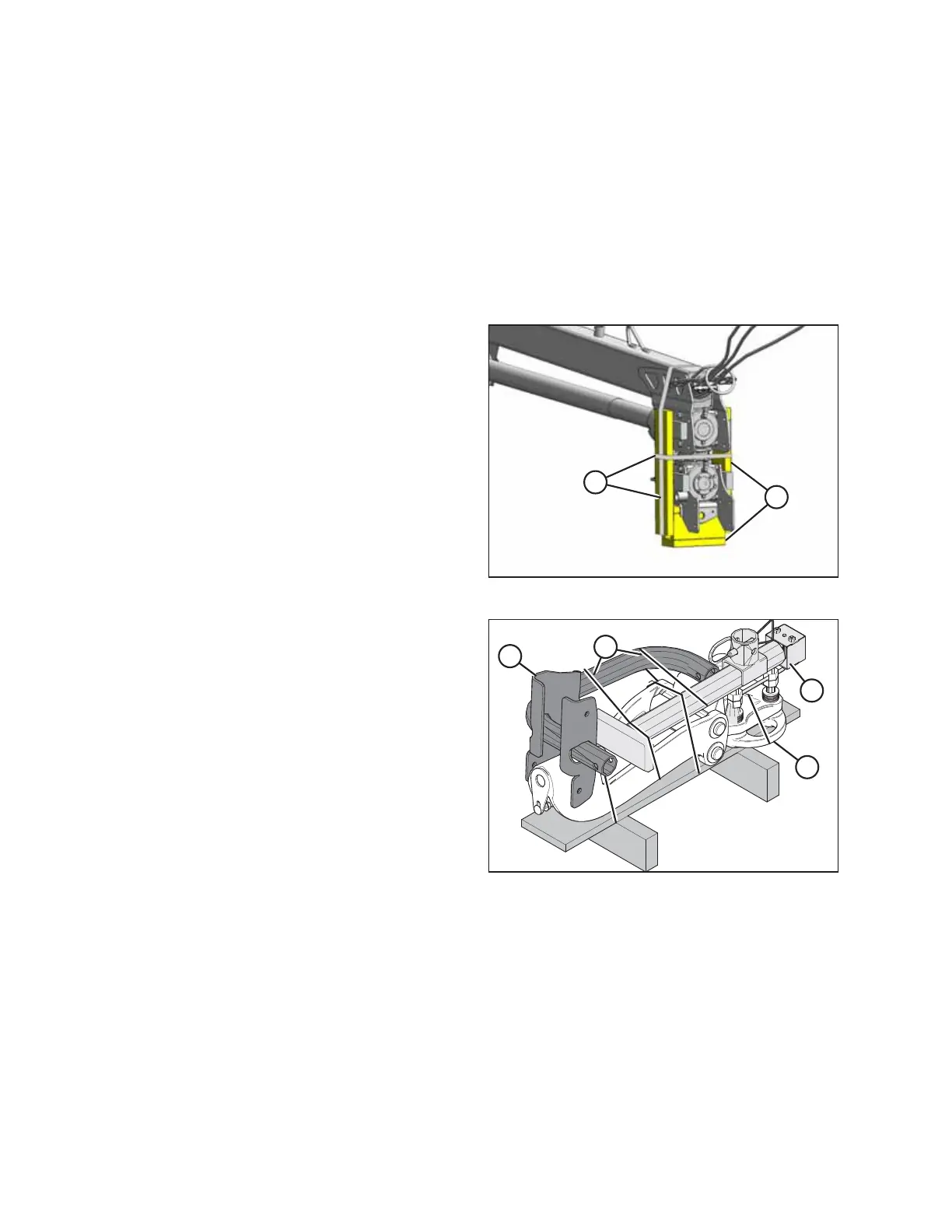

Figure 3.18: Hitch End Packing
1. Remove shipping wire or banding (A) securing shipping
blocks (B) at front of hitch, and remove blocks.
2. Swivel lower gearbox until the input shaft is
facing forward.
1026323
B
C
A
D
Figure 3.19: Jack and Drawbar Hitch Packing
3. Remove shipping wire (A) from the jack stand
support (D) and jack (B). Remove the jack stand
support and jack from the pallet. Leave the drawbar
hitch attached to the pallet.
4. Remove the hardware bag from the jack stand support.
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
