8.4 Converting from Transport to Field Mode (Without Road
Friendly Transport
™™
)
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1. Stop engine and remove key from ignition.
2. Connect all hydraulic hoses (refer to 5.3.3 Connecting Hydraulics, page 98), and connect electrical wiring
harness.
1023735
A

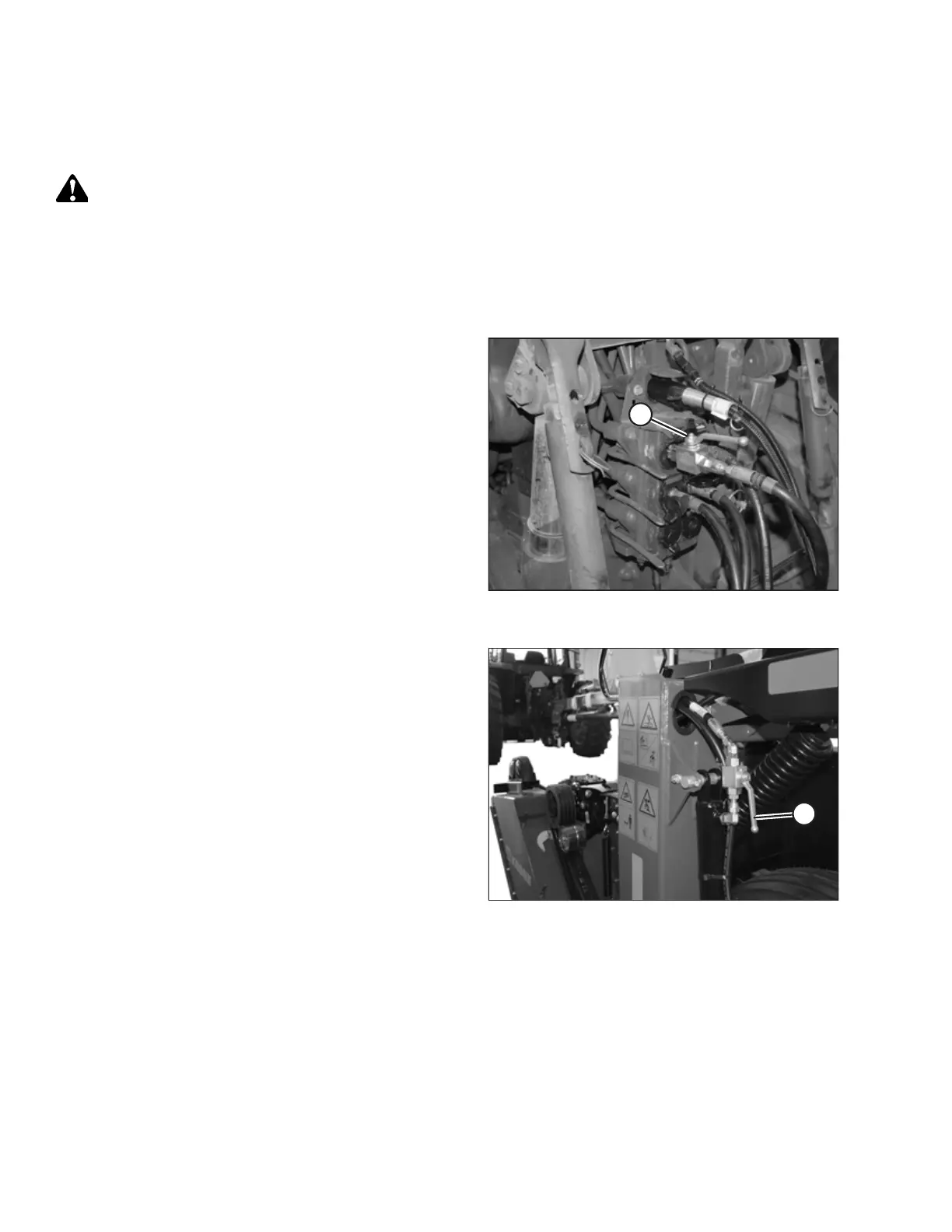

Figure 8.9: Steering Lock-Out Valve in Open
Position
3. Open the steering lock-out valve by turning the
handle (A) to the open position (in line with hose).
1023736
1023736
A
Figure 8.10: Lift Cylinder Lock-Out Valve
4. Open the lock-out valve (A) on each lift cylinder by
turning the handle to the open position (in line
with hose).
TRANSPORTING THE DISC MOWER
