Chapter 4: Assembling the Disc Mower (Factory-Installed
Transport)
Perform the following procedures in order when assembling a disc mower with a factory-installed Road Friendly
Transport
™
.
4.1 Repositioning Center-Link Top Anchor
Perform this procedure to reposition the center-link top anchor into working position.
1016528
A
B
C

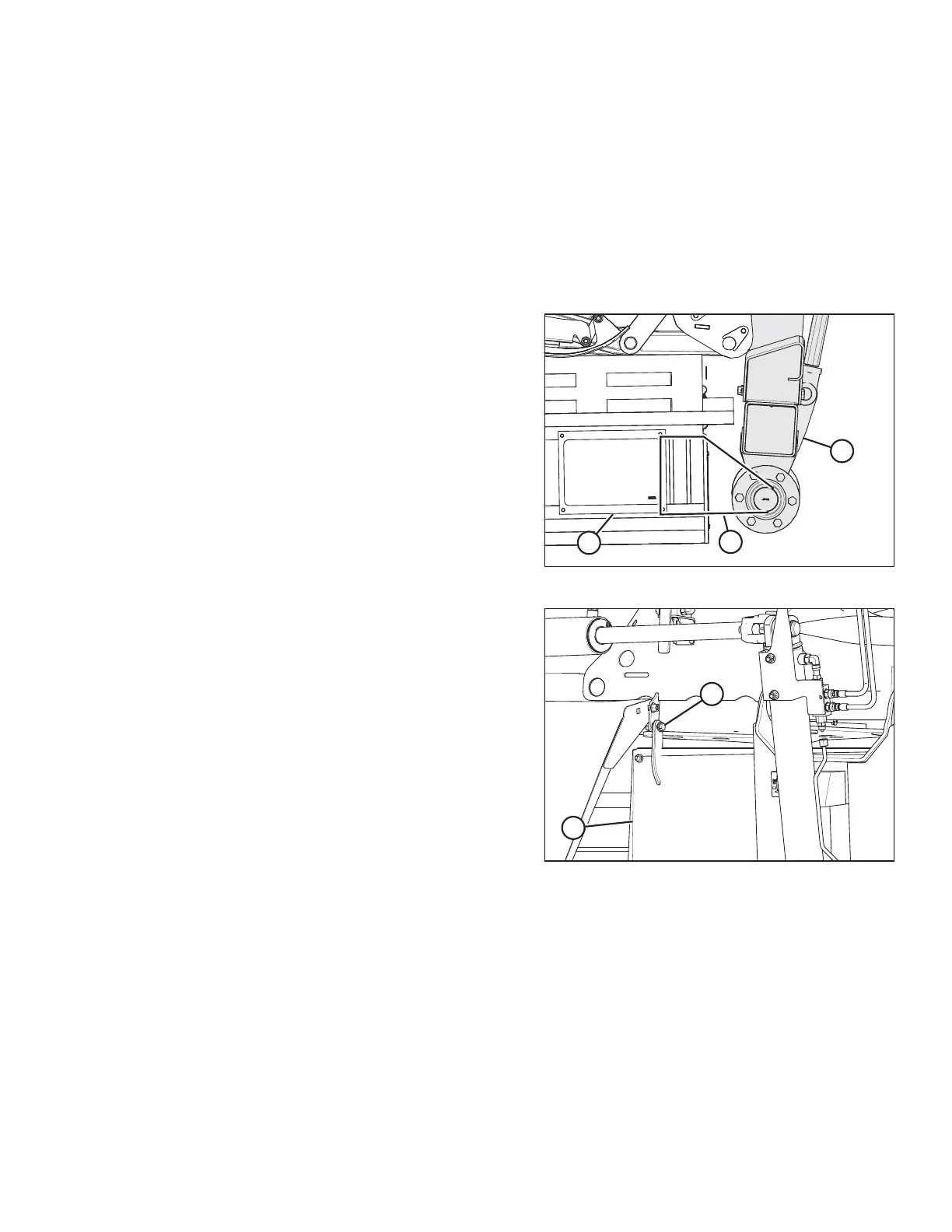

Figure 4.1: Transport Assembly
1. Cut straps (C) securing transport assembly (A) to
pallet (B).
1016532
A
B
Figure 4.2: Center Shield (Finger
Conditioners Only)
2. For disc mowers with finger conditioners only:
Remove bolt (A) securing center shield (B) to the frame.
Lower the shield.
