6.3 Closing Driveshields
CAUTION
Do NOT operate the machine without the driveshields in place and secured.
NOTE:
Images shown in this procedure are for left driveshield—right driveshield is similar.
1010711
A
B

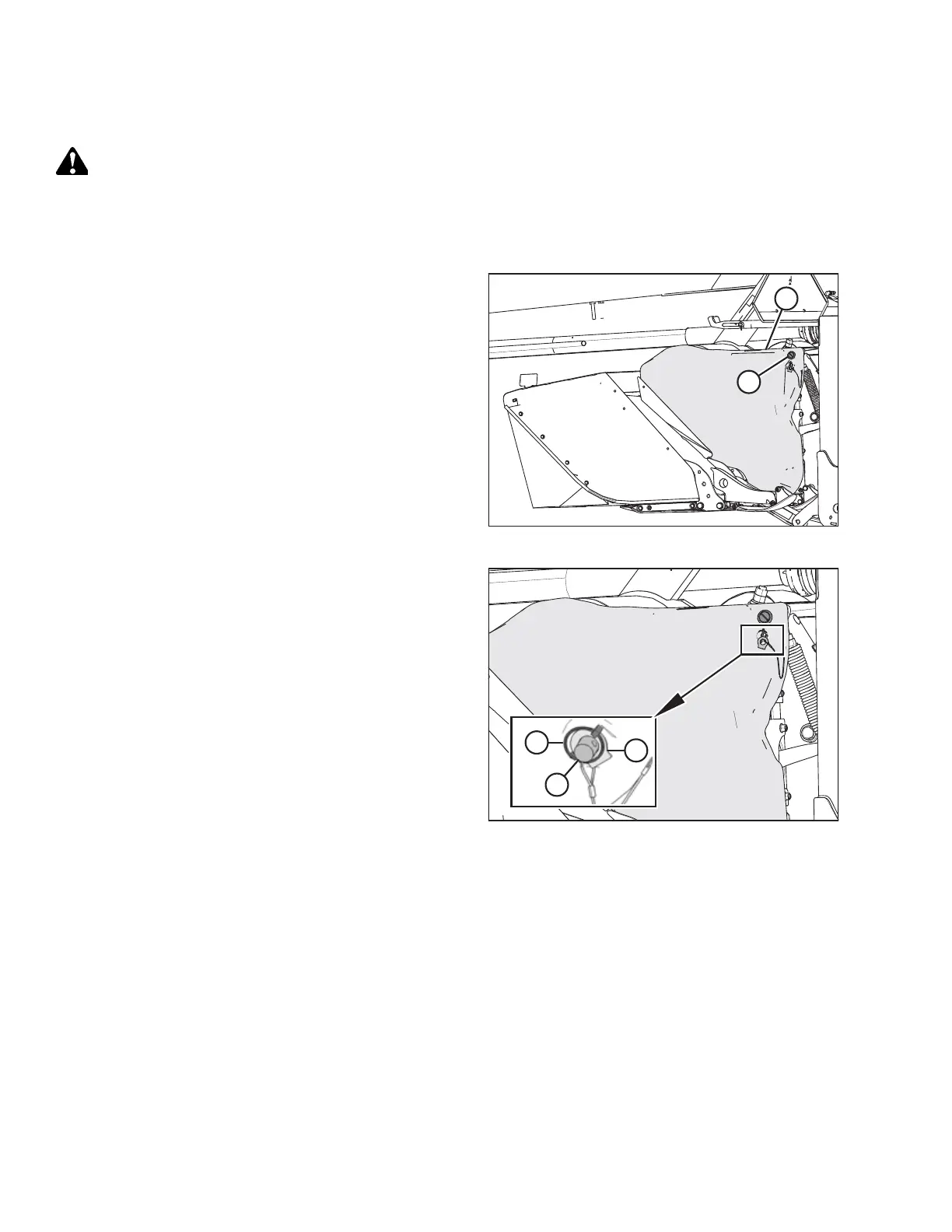

Figure 6.10: Driveshield and Latch
1. Position driveshield onto pins at base of driveshield
(if necessary).
2. Push driveshield (A) to engage latch (B).
3. Check that driveshield is properly secured.
1010707
A
B
C
Figure 6.11: Left Driveshield
4. Replace tool (B) and lynch pin (A) on pin (C).
