MacDon R113 - Page 133

214713 125 Revision A

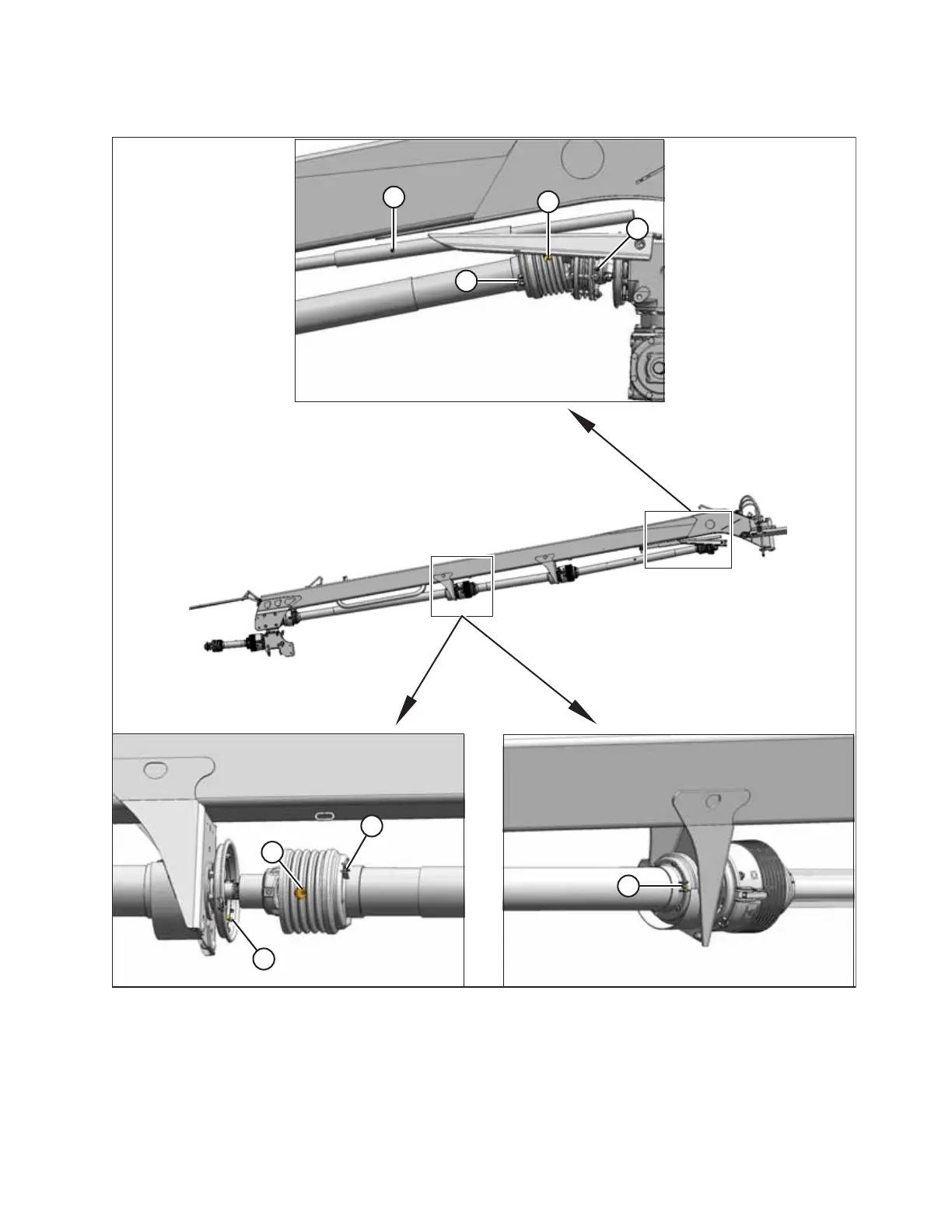

Figure 6.9 Lubrication Points
1010882
A
B
C
D
E
F
G
H
A - Slip Joint, Steering Link B - Guard, Clutch Driveline
C - U-Joint, Clutch Driveline D - Clutch
E - Bearing, Driveline (4.0 M [13-Ft.] 1 Place) (4.9 M [16-Ft.] 2 Places) F - U-Joint, Driveline (4.0 M [13-Ft.] 1 Place) (4.9 M [16-Ft.] 2 Places)
G - Guard (4.0 M [13-Ft.] 1 Place) (4.9 M [16-Ft.] 2 Places) H - Guard (4.0 M [13-Ft.] 1 Place) (4.9 M [16-Ft.] 2 Places)
LUBRICATING THE DISC MOWER
