214713 204 Revision A
11.2 Engaging Locks
WARNING
To avoid bodily injury or death from fall of raised machine, always lock out lift cylinders before going
under disc mower for any reason.
IMPORTANT:
Connect hoses so that moving the cylinder control lever backward raises the disc mower, and moving the cylinder
control lever forward lowers the disc mower. Refer to 5.3.3 Connecting Hydraulics, page 98 for more information.
1010602
A
B

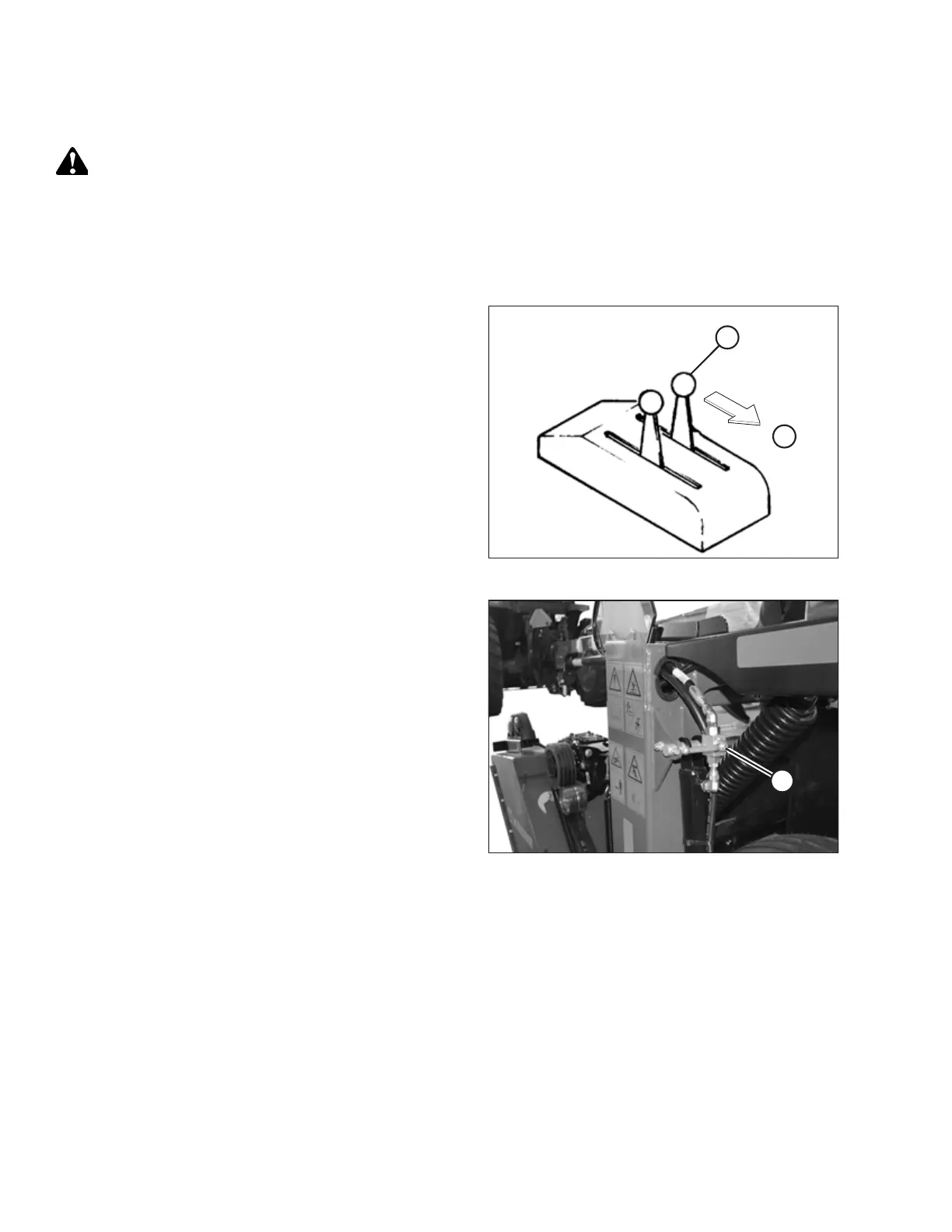

Figure 11.2: Tractor Cylinder Control Lever
1. Move cylinder control lever (A) backward to position (B)
to fully raise machine.
10237341023734
A
Figure 11.3: Lift Cylinder Lock-Out Valve
2. Close the lock-out valve (A) on each lift cylinder by
turning the handle to the closed position (90 degree
angle to the hose).
REFERENCE
To Next Page
