3.7 Connecting Transport Lighting Module
1025979
A
B
C

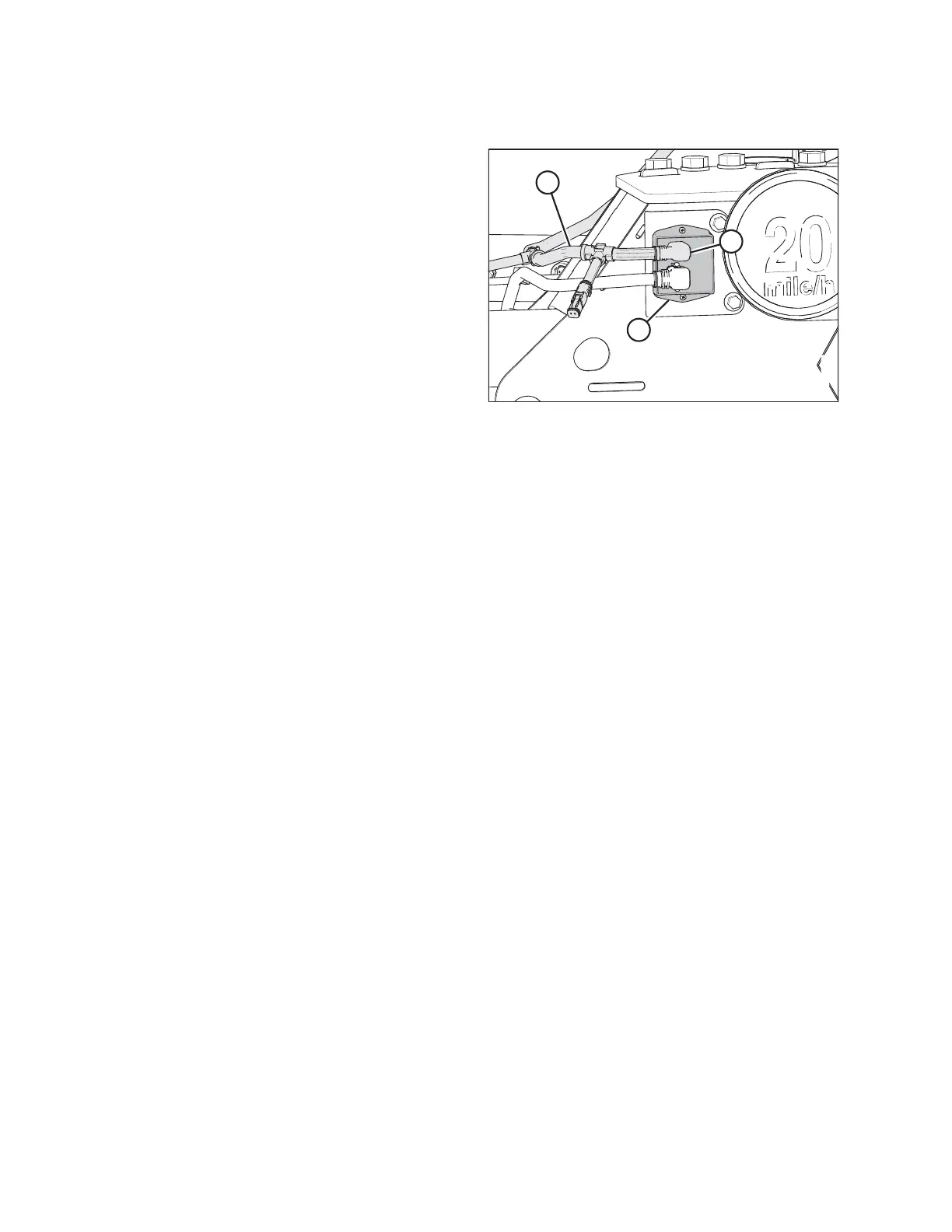

Figure 3.52: Trailer Harness
1. Locate plugs P102 on trailer harness (A) at the header
end of the hitch. Route plug P102 towards the transport
lighting module.
2. Connect plug P102 (B) to the upper input receptacle on
the transport lighting module (C).
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
