214713 7 Revision A
Chapter 2: Unloading Truck Shipment
CAUTION
To avoid injury to bystanders from being struck by machinery, do NOT allow persons to stand in
unloading area.
CAUTION
Equipment used for unloading must meet or exceed the requirements specified below. Using inadequate
equipment may result in chain breakage, vehicle tipping or machine damage.
Lifting Vehicle
Minimum capacity
3630 kg (8000 lb.)
Minimum height
4.5 m (15 ft.)
Chain
Overhead lifting quality 12.7 mm (1/2 inch) 2270 kg (5000 lb.) minimum working load

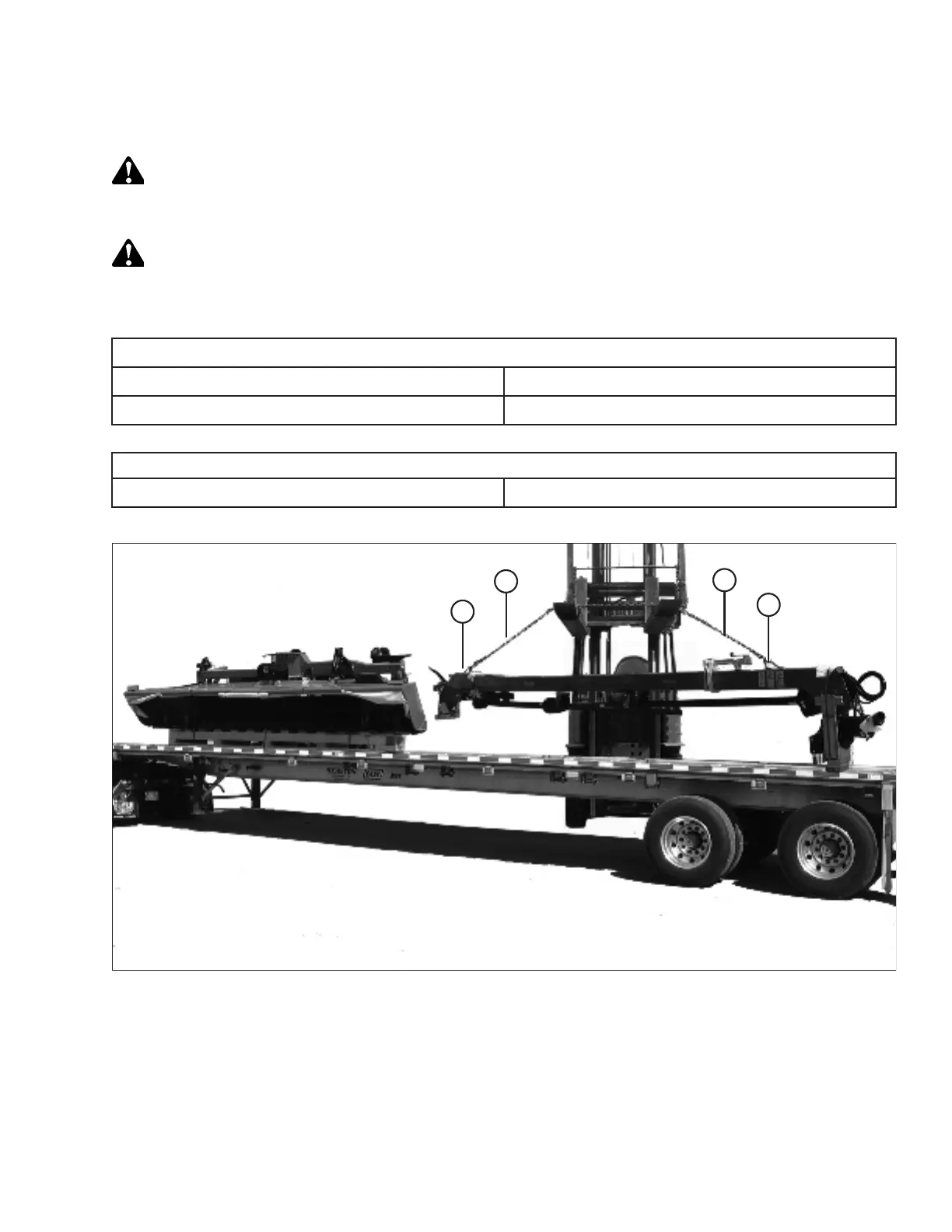

Figure 2.1: Unloading Hitch
1010549
A
B
A
B
1. Remove hauler's tie-down straps and chains.
2. Attach chain (A) to two brackets (B) on top of hitch as shown.
3. Adjust chain lengths so hitch is lifted evenly.
4. Raise hitch off deck, back up until unit clears trailer, and slowly lower to 150 mm (6 in.) from ground.
IMPORTANT:
Take care not to contact the other machine if load is two headers wide.
