5.6.2 Setting up Forming Shields for Roll Conditioner
Use these instructions to set up the forming shields on a machine with a roll conditioner.
1015019
A
B

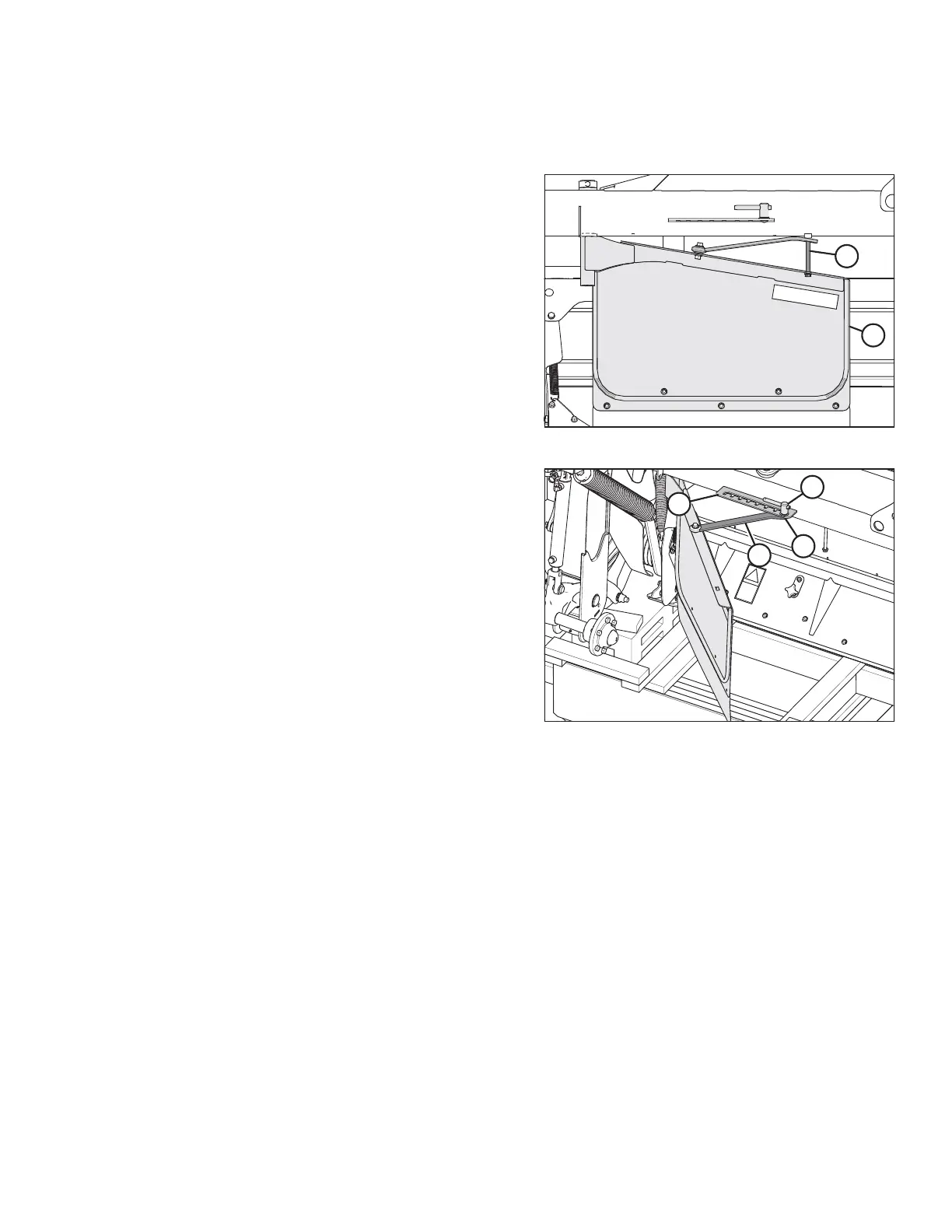

Figure 5.38: Left Side Forming Shield
1. Remove and discard bolt (A) securing forming
shield (B) to frame.
2. Swivel shield (B) to the open position.
1015018
A
B
C
D
Figure 5.39: Adjuster Bar
3. Rotate clamp (B) until you can remove bolt (C).
4. Swing adjuster bar (A) and align with a hole on carrier
plate (D).
5. Install bolt through adjuster bar (A) and carrier plate (D).
Install clamp (B) onto bolt. Tighten clamp until shield
does not move.
6. Repeat above steps for opposite shield.
