MacDon R113 - Page 116

214713 108 Revision A
1016554
A
B

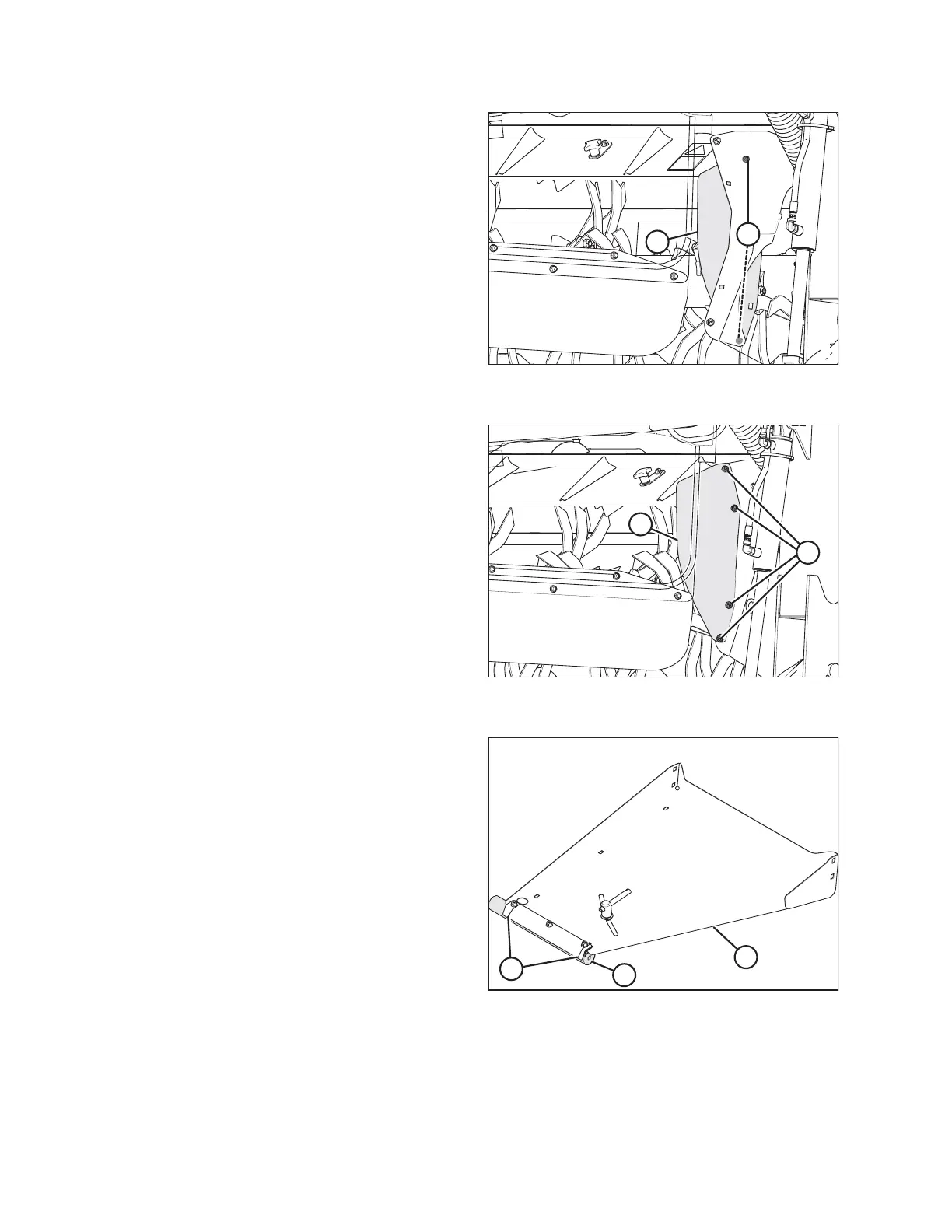

Figure 5.35: Right Side Deflector Shield Shown
– Left Side Deflector Shield Opposite
15. Remove two M10 carriage bolts (B) securing left
deflector (A) in shipping position. Repeat for opposite
deflector.
1016553
B
A
Figure 5.36: Right Side Deflector Shield Shown
– Left Side Deflector Shield Opposite
16. Reposition deflector (A) so that holes align with the
fixed shield, and secure with four M10 carriage bolts (B)
and hex head flange nuts.
1015016
B
C
A
Figure 5.37: Forming Shield Curtain
17. Remove shipping wires (A) securing curtains (B) to
covers (C) and allow curtains to unfold before
operating machine.
SETTING UP THE TRACTOR
