MacDon R113 - Adjusting Conditioner Baffle Position

214713 144 Revision A
7.14 Adjusting Conditioner Baffle Position
1011405
A
B
C
D

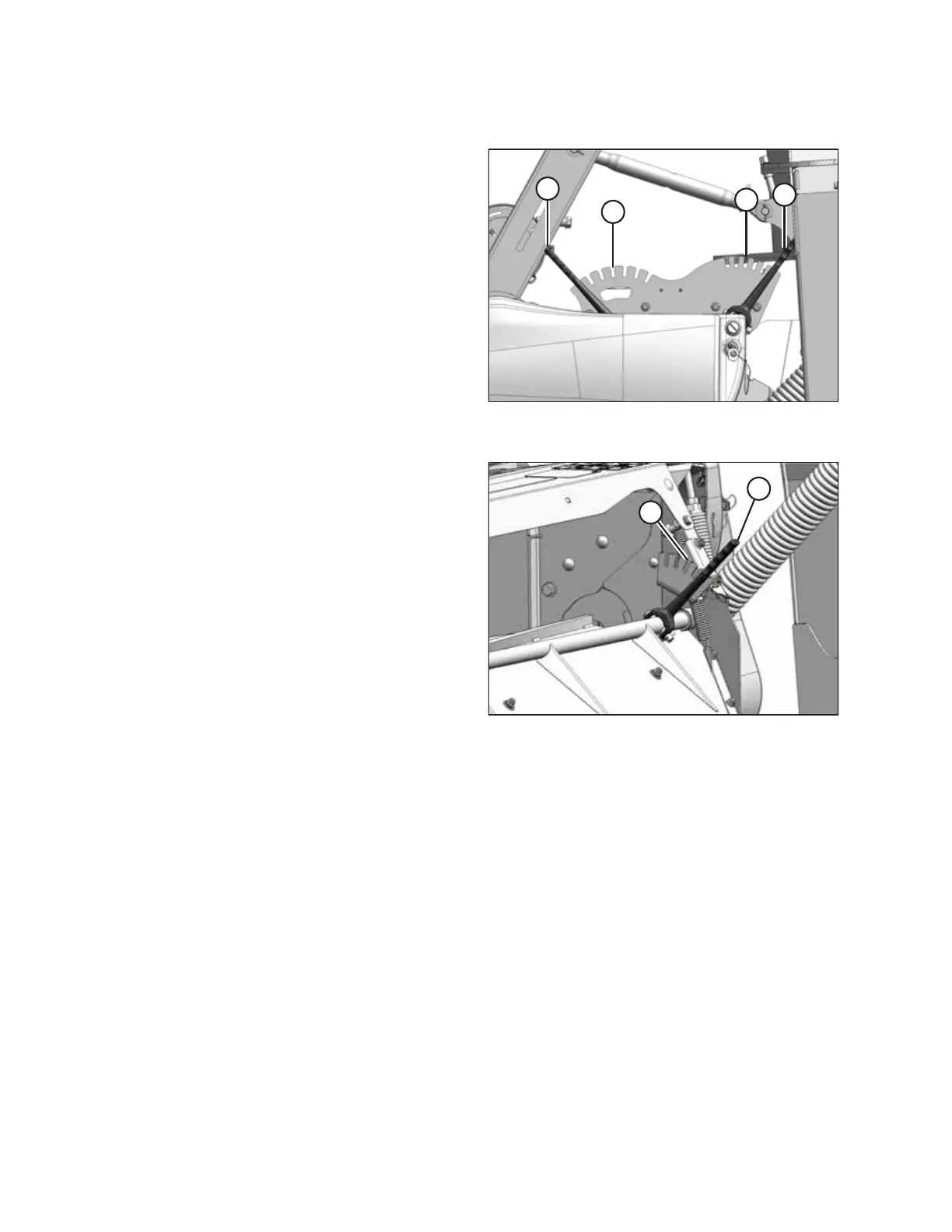

Figure 7.26: Baffle Adjusters (Finger
Conditioners)
1. On finger conditioners, move the baffle adjustment
handles (A) and (B) to the middle positions (C) and (D)
on adjustment plates.
1011407
A
B
Figure 7.27: Baffle Adjuster (Roll Conditioners)
2. On roll conditioners, move baffle adjustment handle (A)
to the middle position (B) on adjustment plate.
