8.6.2 Converting from Transport to Field Mode (With Road Friendly
Transport
™™
)
DANGER
To prevent serious injury or death, do NOT convert the machine into, or from transport mode until all
people, animals, and objects are clear of the unit’s rotational range.
WARNING
To prevent equipment damage, ensure cutterbar doors are properly closed before converting the machine
from field to transport mode.
1023691
A
B
C

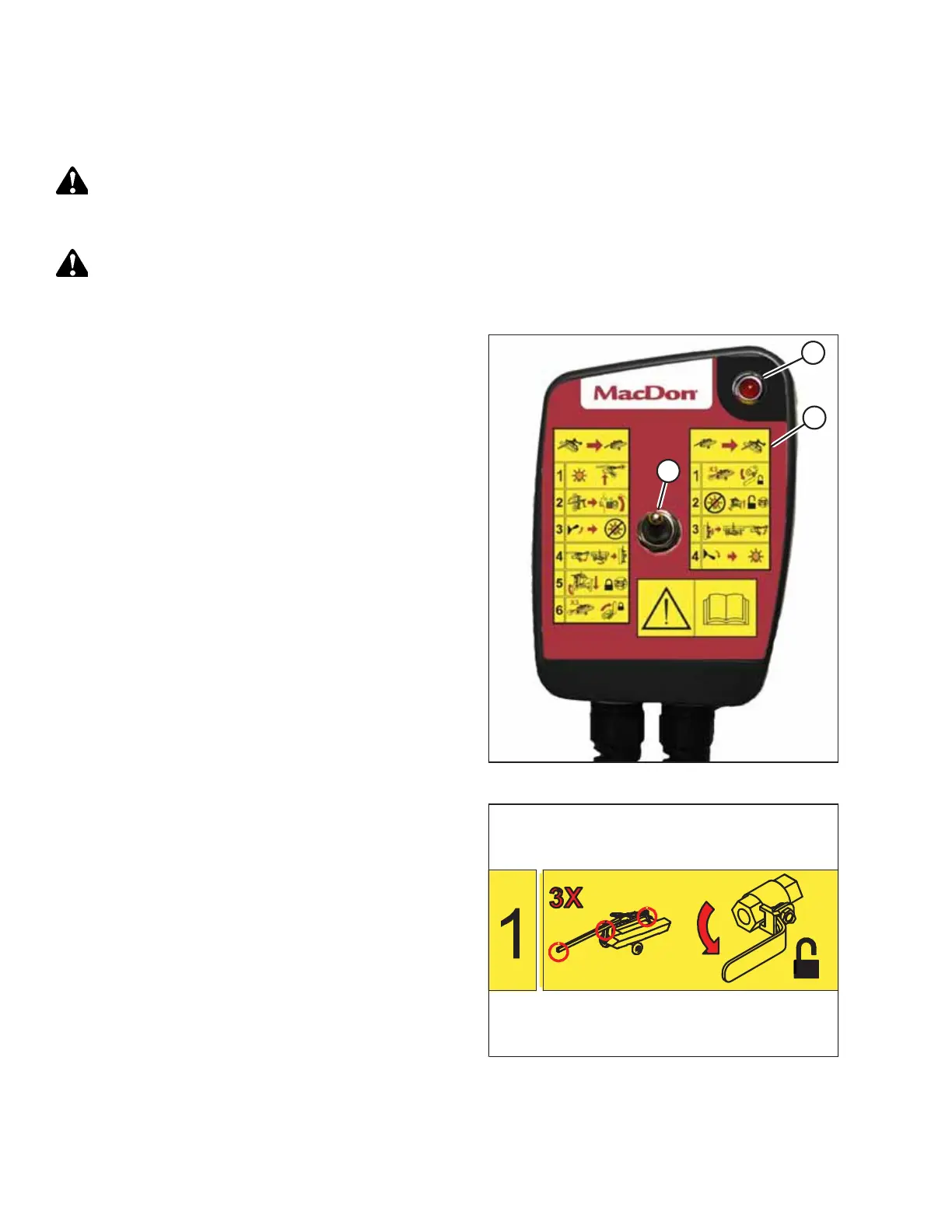

Figure 8.27: Remote Control
1. Following the steps on the transport-to-field decal (A),
move transport switch to the upper position (C) and
ensure that light (B) is NOT illuminated.
1023685
Figure 8.28: Hydraulic Lockout
2. Open the steering lock-out valve and the two lift cylinder
lock-out valves by turning the handles to the open
position.
