MacDon R113 - Page 175

214713 167 Revision A
1023735
A

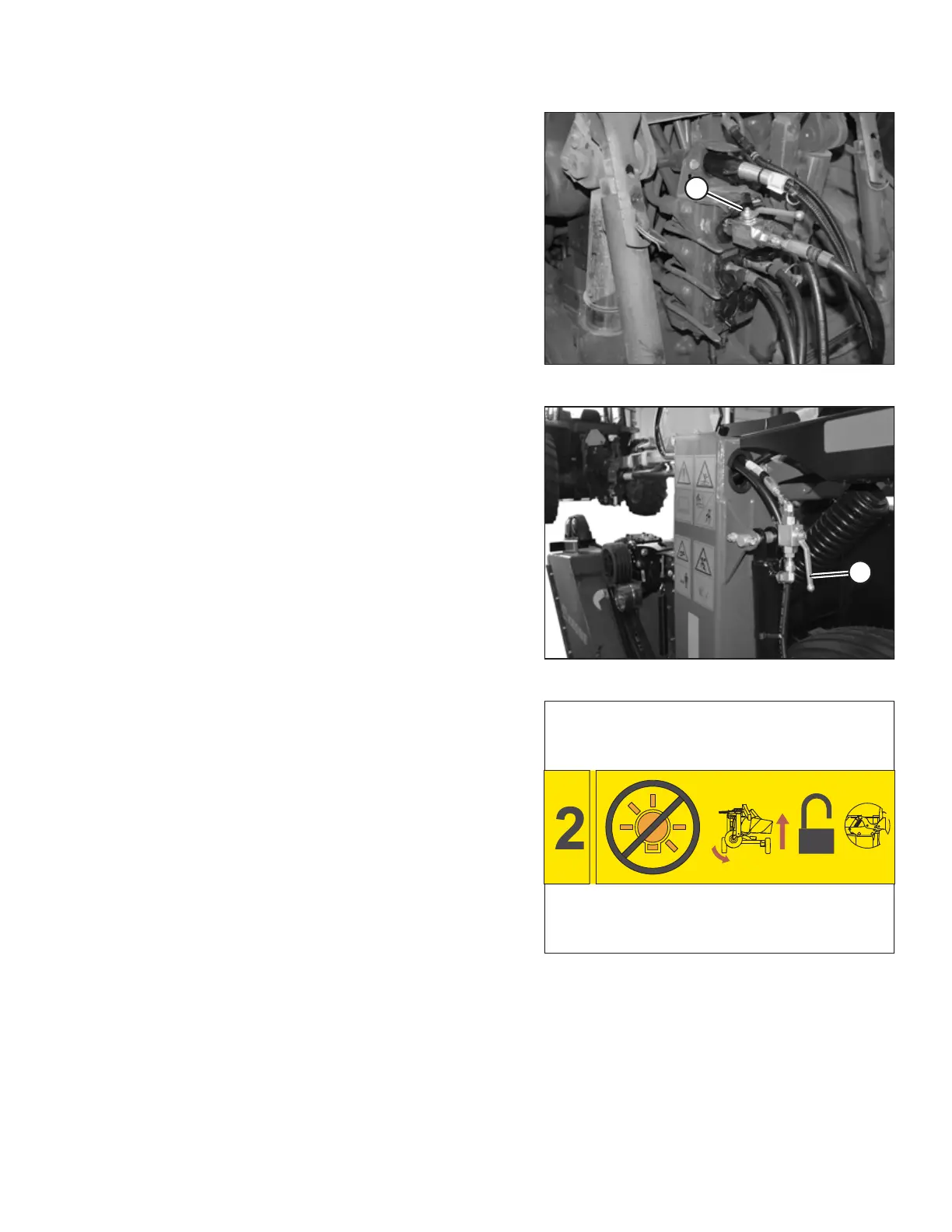

Figure 8.29: Steering Lock-Out Valve
Steering lock-out: Open the valve by turning
handle (A) to the open position (in line with the hose).
1023736
1023736
A
Figure 8.30: Lift Cylinder Lock-Out Valve
Lift cylinder lock-out: Open the valve by turning
handle (A) to the open position (in line with the hose).
Repeat on opposite side.
1023686
Figure 8.31: Raising Disc Mower
3. While the light is NOT illuminated, operate the lift
control lever (as if raising the disc mower) to fully
extend the lift cylinders and raise the cutterbar off the
transport assembly support. The carrier frame latch will
automatically open.
TRANSPORTING THE DISC MOWER
