214713 168 Revision A
1023687

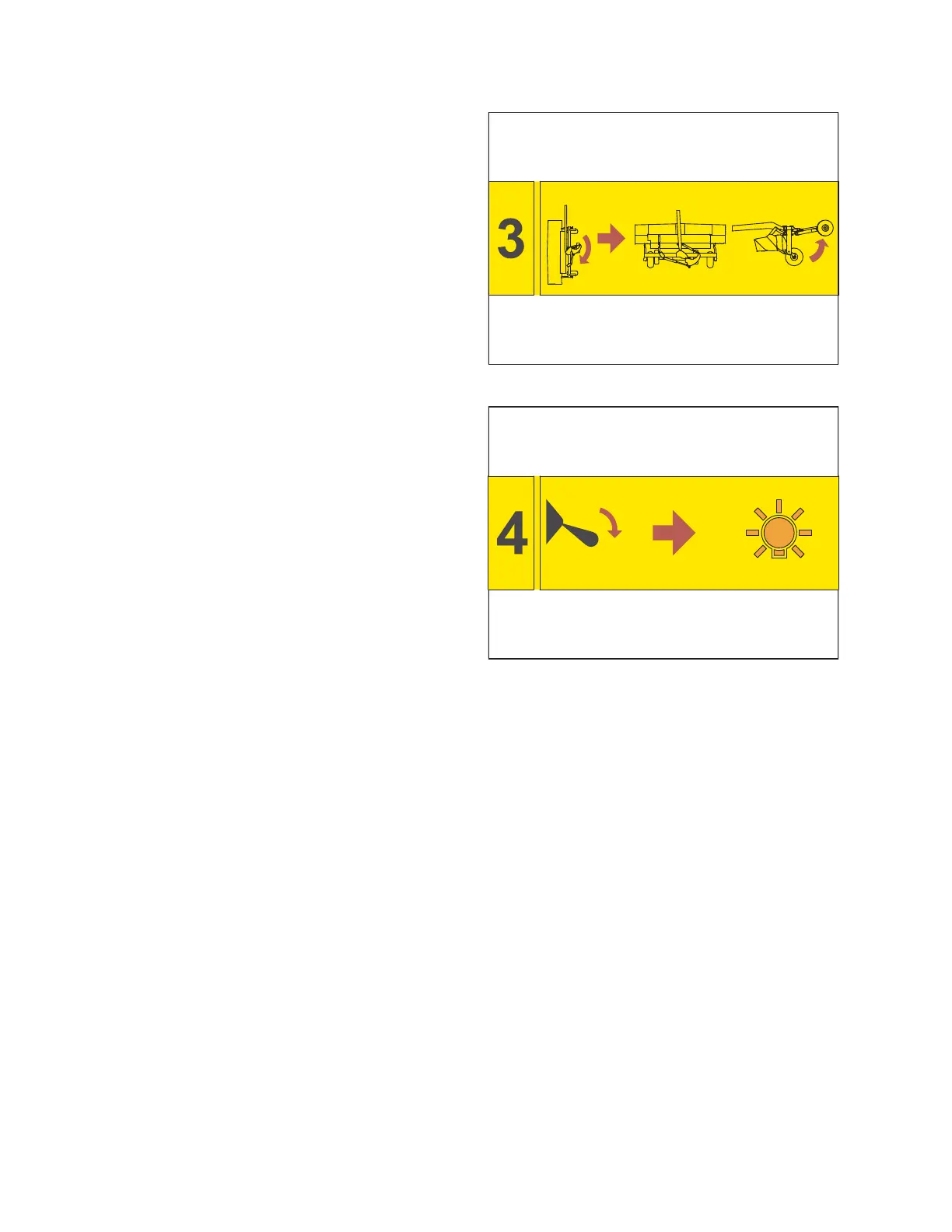

Figure 8.32: Disc Mower Rotation
4. Operate the hitch swing control lever to rotate the disc
mower to the right. The disc mower will stop when it
reaches operating position.
NOTE:
A sequenced movement transitions the disc mower
from transport to field mode. This is accomplished by
the rear transport swing cylinder, and the transport
deploy cylinder. During the transition, continue to hold
the hitch swing lever in the active position to allow oil to
be supplied to the two cylinders sequentially.
1023688
Figure 8.33: Transport Switch
5. Continue operating the hitch swing control lever to fully
raise the transport assembly and lower the disc mower
onto the field wheels.
6. Move transport switch to the lower position and ensure
that the light on the remote control is illuminated.
Transport conversion is now complete and the hitch
swing circuit is active.
TRANSPORTING THE DISC MOWER
