MacDon R113 - Installing Tractor Mating Hitch to Carrier Hitch; Installing Drawbar Hitch

214713 65 Revision A
4.3 Installing Tractor Mating Hitch to Carrier Hitch
Depending on disc mower configuration, refer to the applicable installation procedure:
• 4.3.1 Installing Drawbar Hitch, page 65
• 4.3.2 Installing Two-Point Hitch (Cat. II) Adapter, page 69
4.3.1 Installing Drawbar Hitch
If attaching the disc mower to a tractor with a drawbar hitch, proceed as follows. If attaching the disc mower to a
tractor with a two-point hitch, refer to 4.3.2 Installing Two-Point Hitch (Cat. II) Adapter, page 69.
1011296
B
A

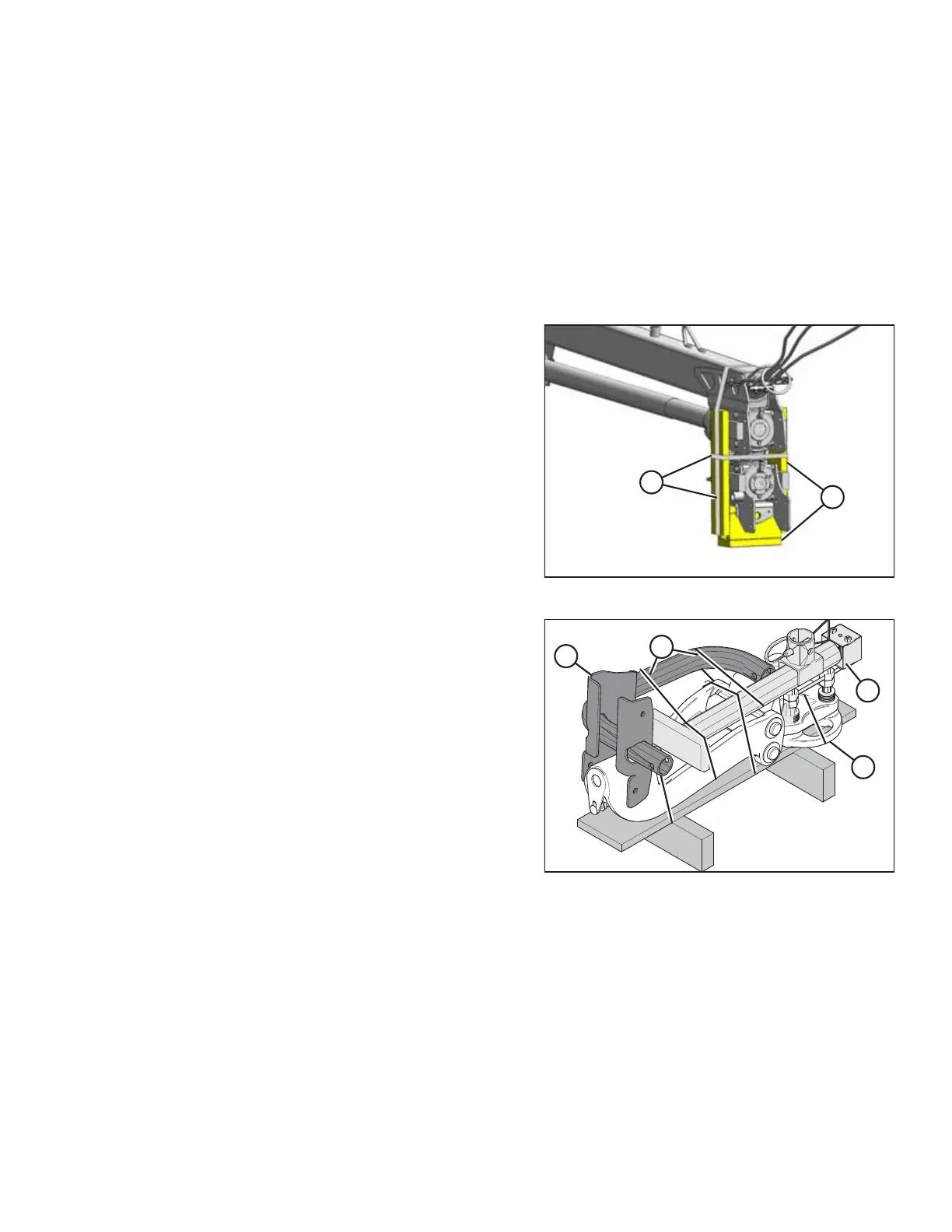

Figure 4.21: Hitch End Packing
1. Remove shipping wire or banding (A) securing shipping
blocks (B) at front of hitch, and remove blocks.
2. Swivel lower gearbox until the input shaft is
facing forward.
1026323
B
C
A
D
Figure 4.22: Jack and Drawbar Hitch Packing
3. Remove shipping wire (A) from the jack stand
support (D) and jack (B). Remove the jack stand
support and jack from the pallet. Leave the drawbar
hitch attached to the pallet.
4. Remove the hardware bag from the jack stand support.
