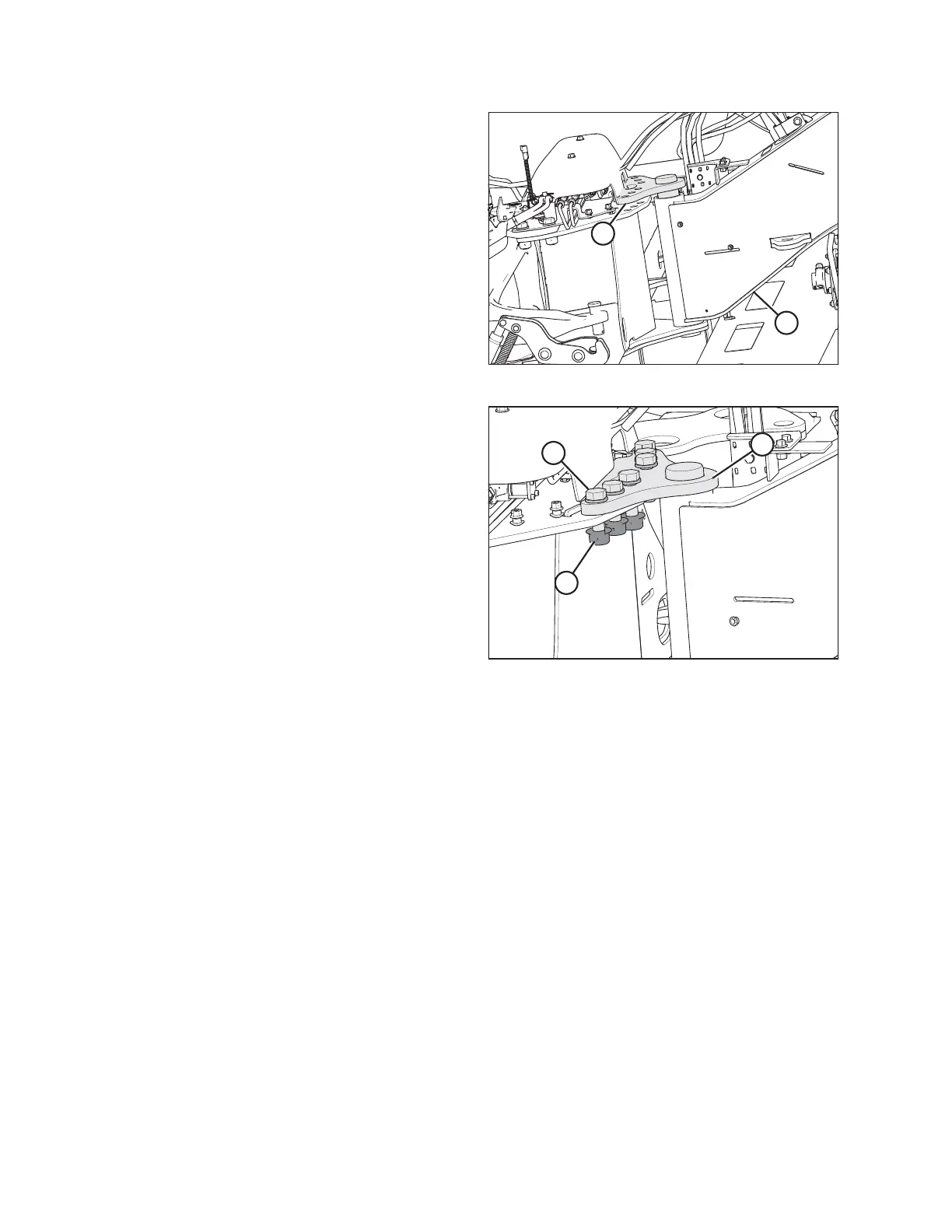

Figure 4.19: Pivot Pin
13. Slowly lower hitch (A) while maintaining pin alignment
until pin (B) is fully inserted. If necessary, use a large
soft hammer to seat pin.
1022637
A
B
C
Figure 4.20: Pivot Pin
14. Line up holes in pin (A) with holes in the carrier frame.
Install six M20 x 65 bolts (B) with hardened washers
under the bolt head, and secure with lock nuts (C).
15. Tighten outer bolts (B) first to draw the plate against the
frame, then tighten the inner bolts. Torque bolts to
461 Nm (340 lbf·ft).
