Installing Cover
1022610
A
B

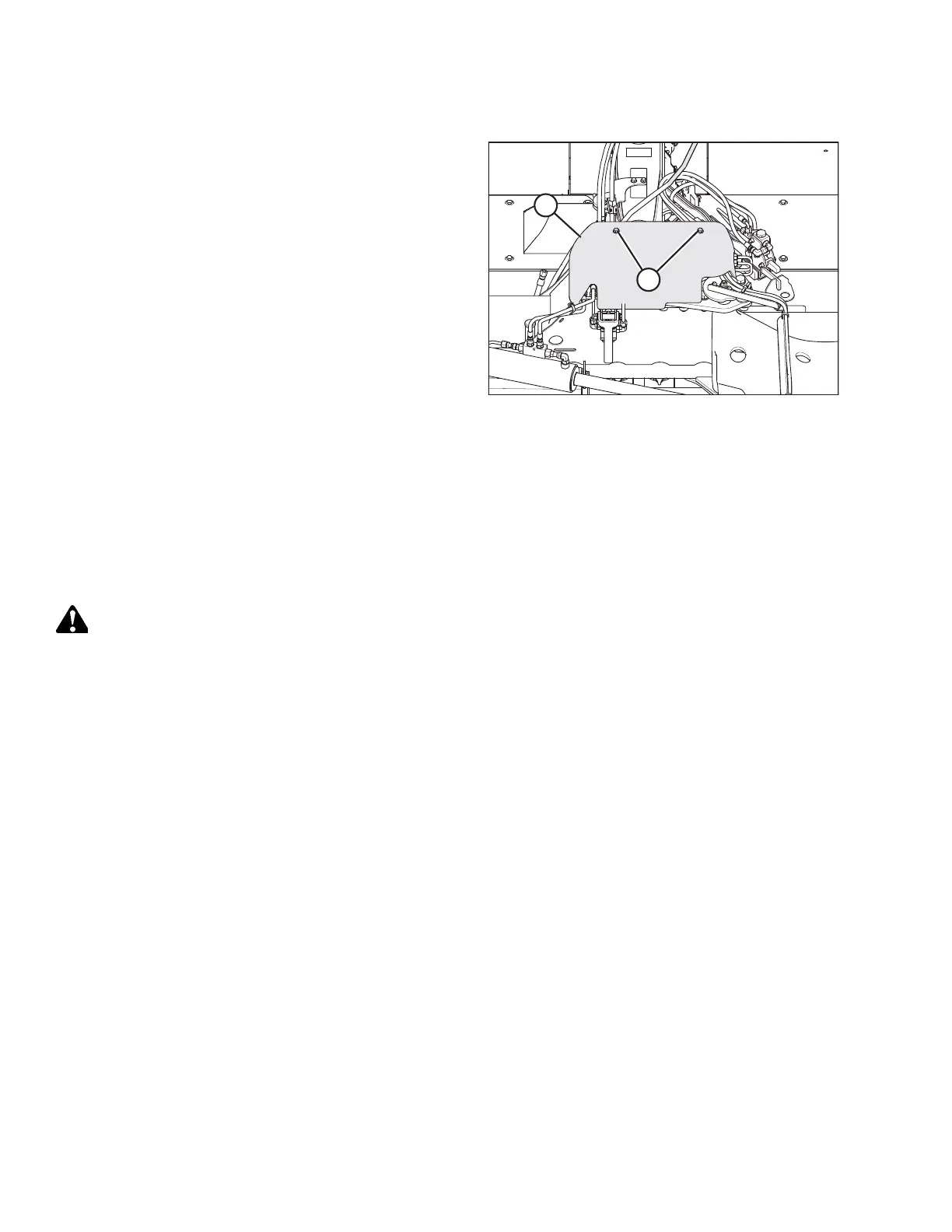

Figure 3.115: Cover
1. Install cover (A) onto the cover support.
2. Install bolts (B). Torque to 55–65 Nm (41–48 lbf·ft).
3.8.2 Installing Hydraulic Center-Link (Optional)
The hydraulic center-link option is supplied in a separate shipment. Refer to the installation instructions supplied
with the kit.
3.8.3 Installing Tall Crop Divider (Optional)
The tall crop divider is supplied in a separate shipment. Refer to the installation instructions supplied with the kit.
DANGER
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
IMPORTANT:
If disc mower will be transported on public roads in the Road Friendly Transport
™
mode, do not install the tall crop
dividers. Install the dividers after the machine is delivered to the customer.
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
