MacDon R113 - Installing Hydraulic Lines and Hoses

214713 81 Revision A
1014336
A
B

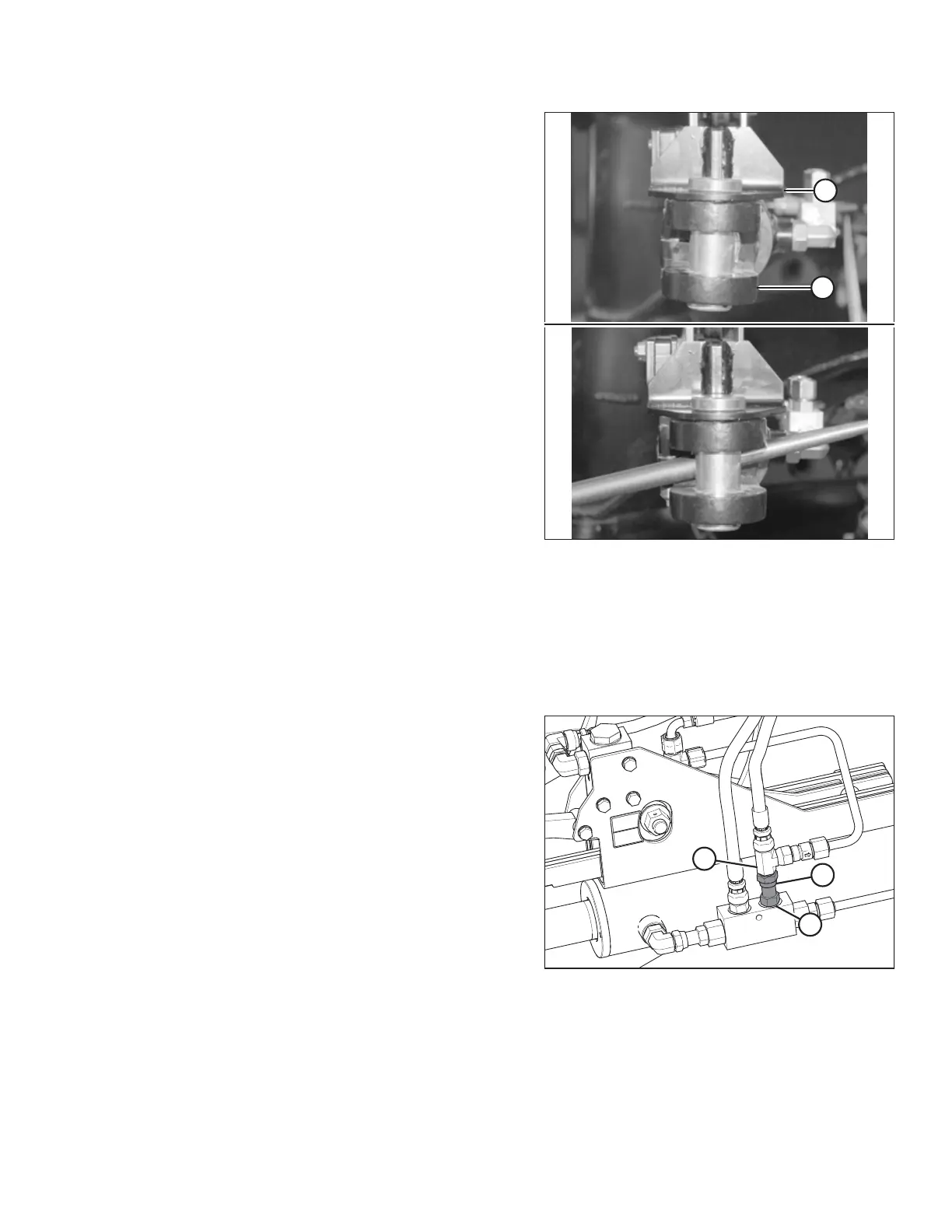

Figure 4.60: Cam Arm Alignment
4. Ensure the end of cam arm (A) is parallel with the clevis
end (B) of the cylinder. If adjustment is required, use a
bar and turn the clevis until the clevis is parallel with
cam arm (A).
NOTE:
The clevis end of cylinder will be attached to Road
Friendly Transport
™
system casting when the system is
primed. Refer to 5.5 Priming the Hitch Swing Cylinder,
page 102.
4.8.3 Installing Hydraulic Lines and Hoses
This procedure explains how to install the transport hydraulic control system.
NOTE:
For hydraulic fitting installation details, refer to 11.6 Torque Specifications, page 208.
1014890
A
B
C
Figure 4.61: Alignment Valve Fitting
1. Place a container or rag under the fitting on the hitch
swing cylinder.
2. Remove the existing fitting at location (A) from
the block.
3. Remove cap from fitting (C).
IMPORTANT:
Ensure O-ring is in place.
4. Retrieve ORFS-6 x ORB-6 connector (B) from shipping
bag A and install into location (A).
ASSEMBLING THE DISC MOWER (FACTORY-INSTALLED TRANSPORT)
