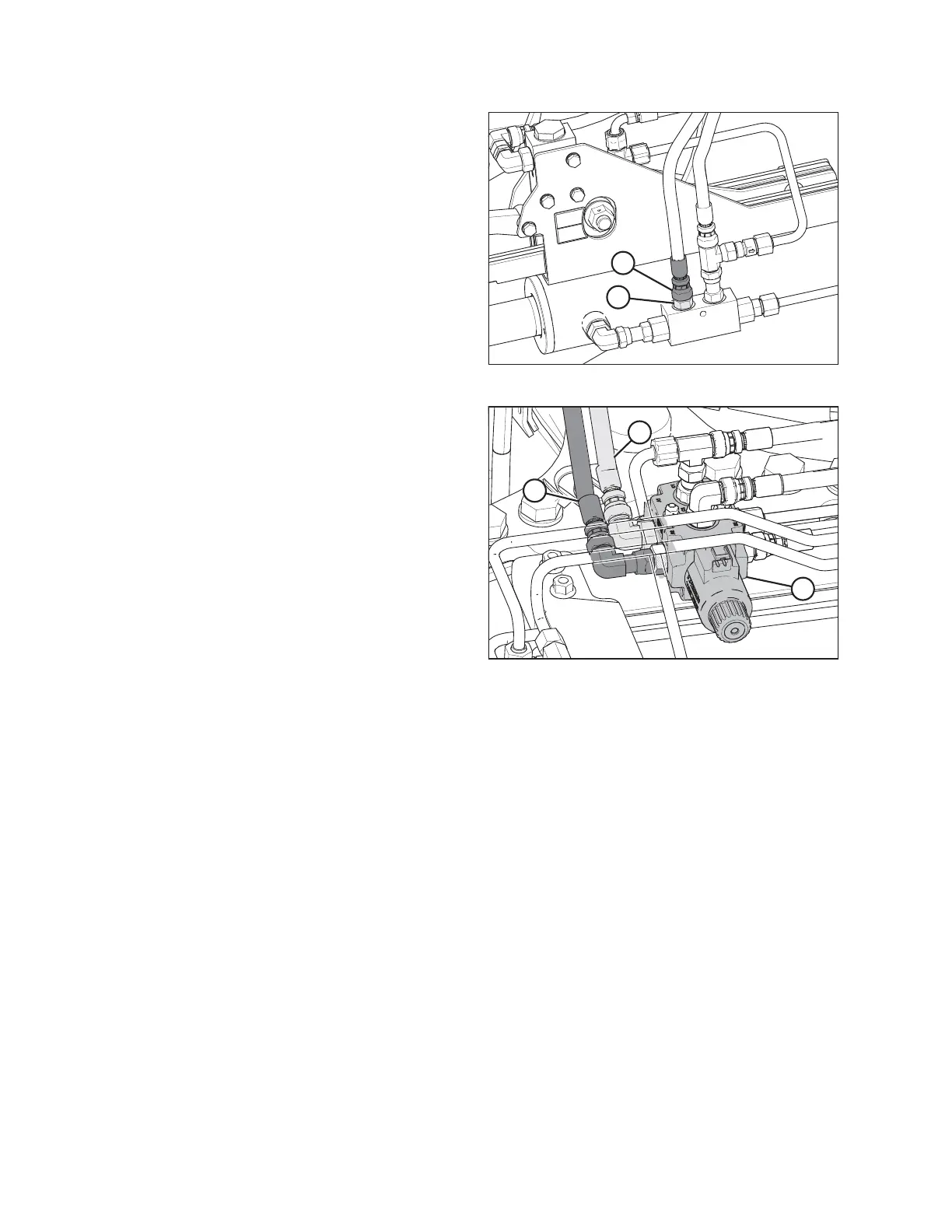

Figure 4.62: Alignment Valve Fitting
5. Remove the cap from fitting (A).
6. Remove the plug from hose (B). Install hose to
fitting (A) as shown.
1022691
A
B
C
Figure 4.63: Selector Valve Supply
7. Connect hose (B) with red collar #2, from the rear of the
hitch, to fitting in port A1 on selector valve (C).
8. Connect hose (A) with blue collar #2, from the rear of
the hitch, to fitting in port A2 of the selector valve (C).
9. Secure hoses (A) and (B) together with cable tie.
Installing secondary lift hose for field wheels
NOTE:
The secondary lift hose is required to lift the field wheels fully into storage position when the disc mower is in
transport mode.
Retrieve the following secondary lift hose from the shipping bag according to your disc mower size:
• 4.0 m (13 ft.) headers: Use hose MD #224160.
• 4.9 m (16 ft.) headers: Use hose MD #224162.
ASSEMBLING THE DISC MOWER (FACTORY-INSTALLED TRANSPORT)
