5.8.2 Installing Discharge Shield (No Conditioner)
Follow these steps to install the shielding on a disc mower configured without a conditioner:
1015062
B
A

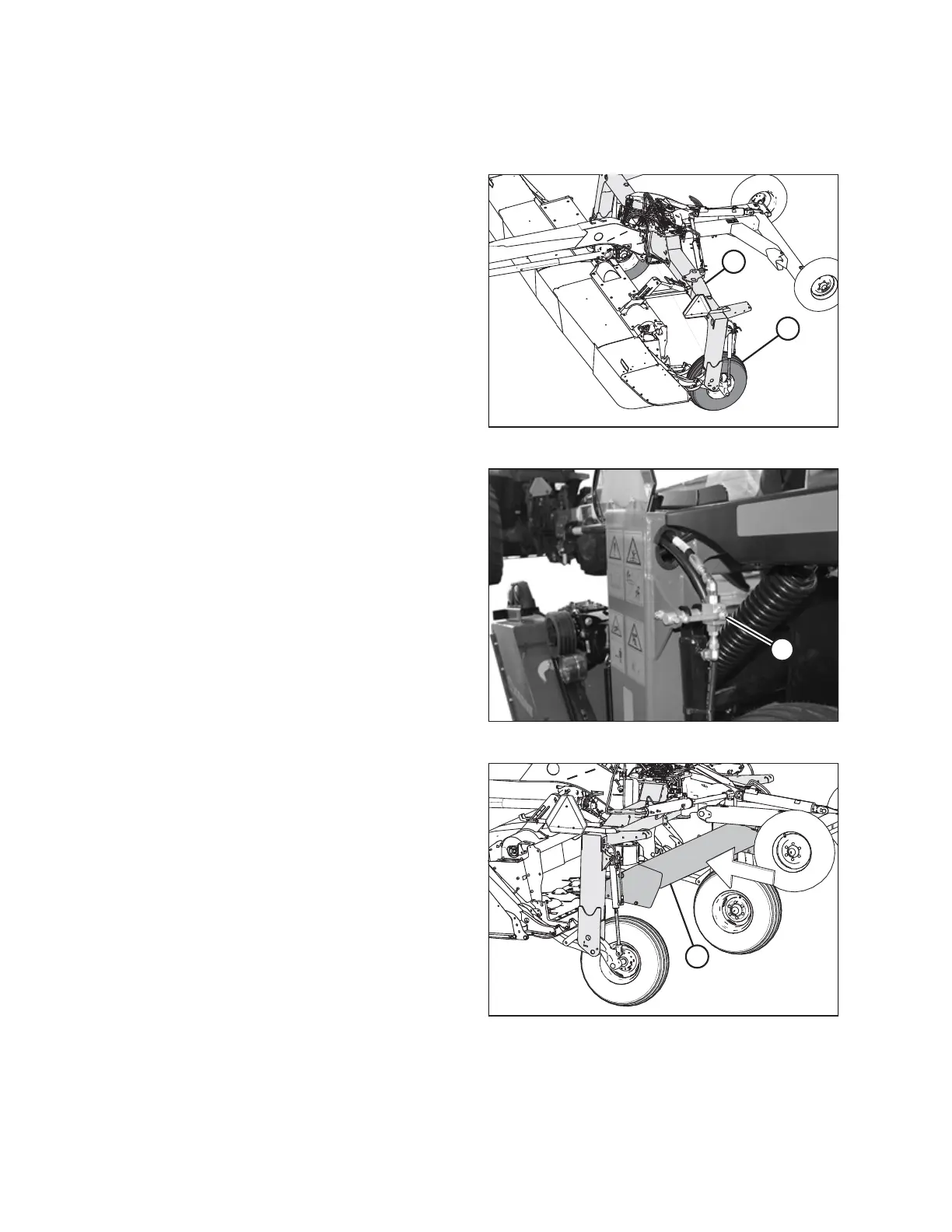

Figure 5.50: Disc Mower with Transport
1. Raise the mower fully and extend the center-link to
maximize the space between field wheels (A) and
carrier frame (B).
10237341023734
A
Figure 5.51: Lift Cylinder Lock-Out Valves
2. Close lift cylinder lock-out valves (A) on both sides of
the mower. Valve handles should be in the closed
position (90 degree angle to the hose).
1015063
A
Figure 5.52: Shield Rotated
3. Rotate shield (A) and pass it between the field wheels
and the carrier frame toward the mower.
