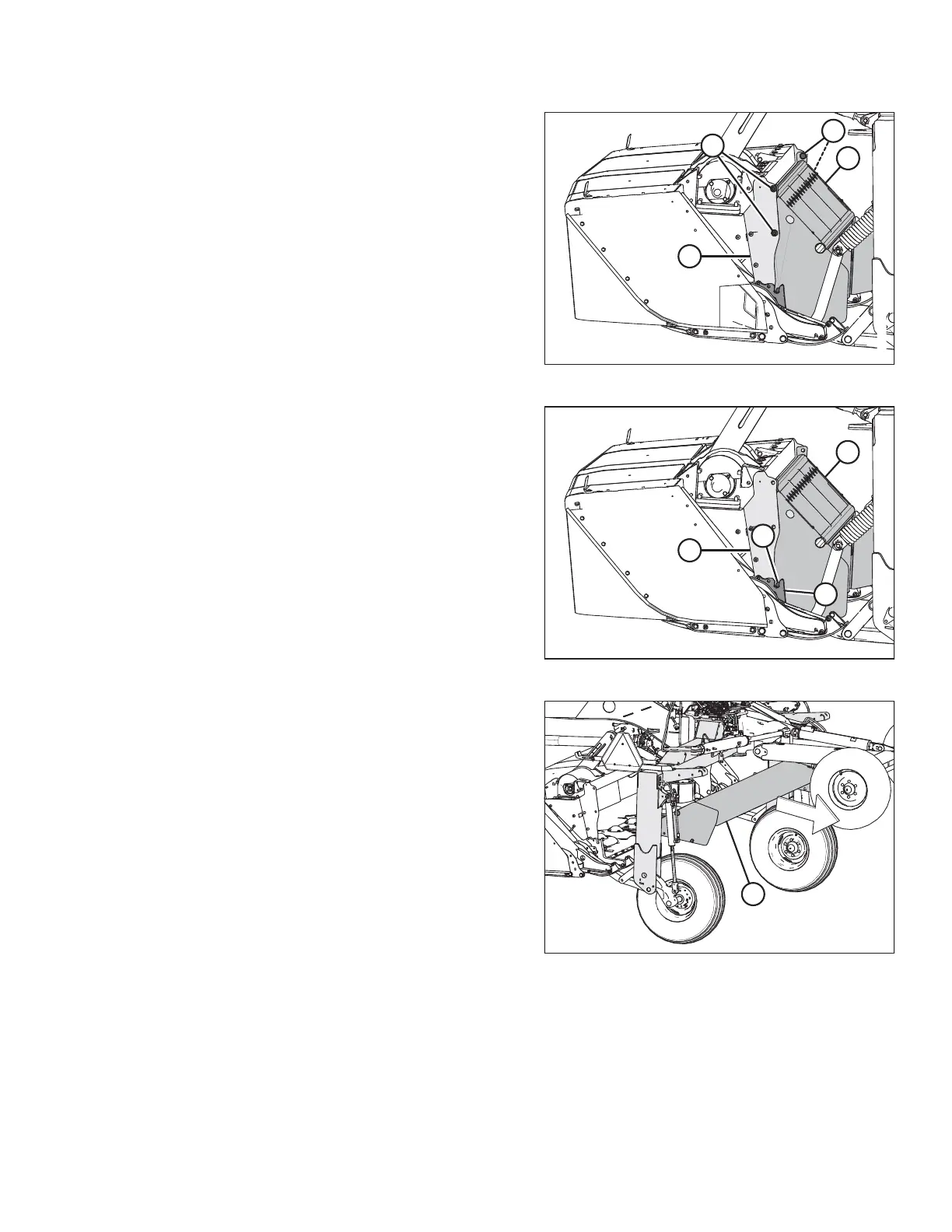

Figure 5.47: Header Side View
3. Remove four M16 hex head bolts (A), nuts, and flat
washers securing shield (B) to panel on mower (C).
1010880
A
B
C
D
Figure 5.48: Header Side View
4. Lift the shield (A) until pins (B) disengage from slots in
support (C) and shield on panel (D).
1015040
A
Figure 5.49: Shield Rotated
5. Rotate shield (A) 90 degrees and move it away from the
carrier frame.
