214713 44 Revision A
Installing Hydraulics
This section explains how to install the transport hydraulic control system.
Installing Hydraulic Lines and Hoses
NOTE:
Cover support bracket removed from illustrations for clarity.
NOTE:
Refer to 11.6 Torque Specifications, page 208 for hydraulic fitting installation details.
1018408
A
B
C
D

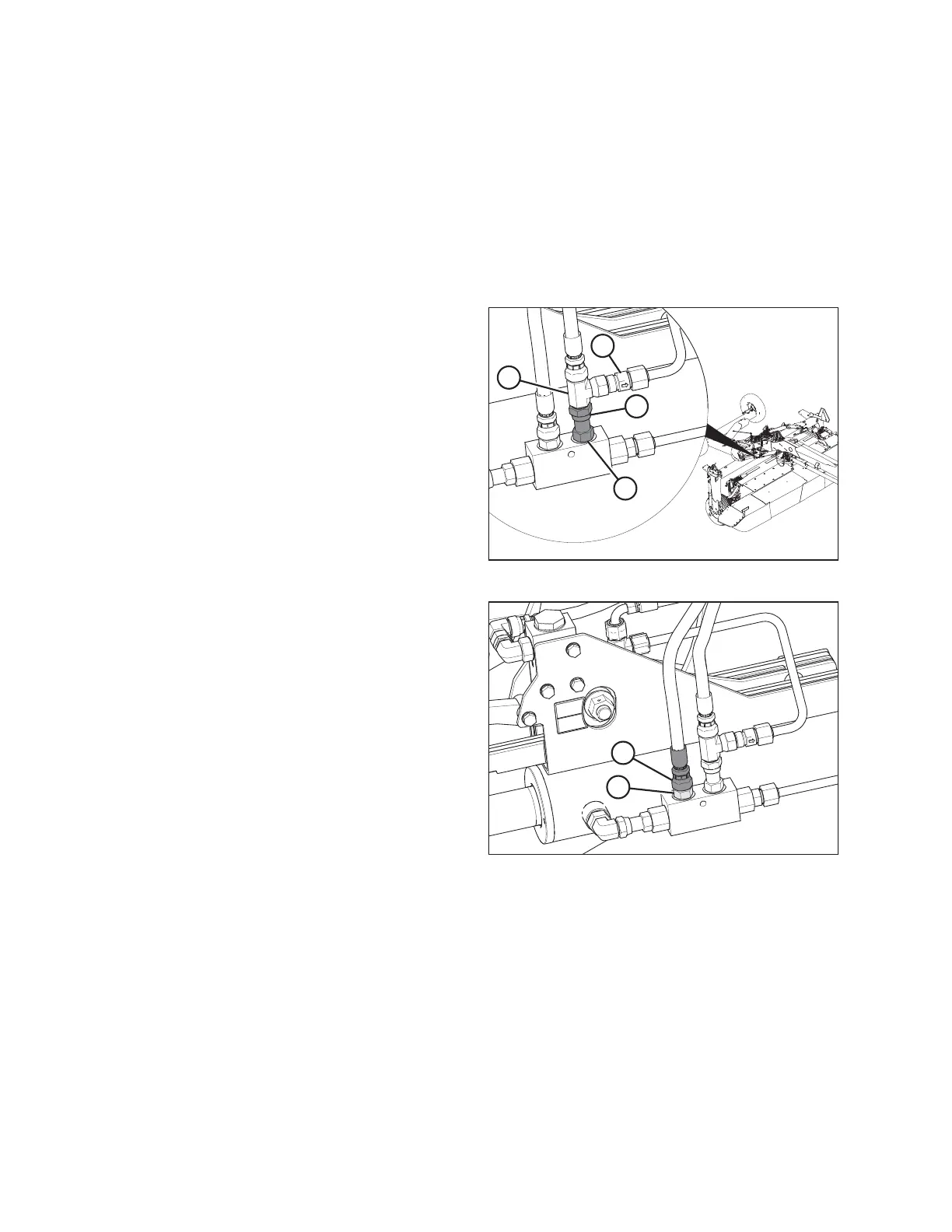

Figure 3.87: Alignment Valve Fitting
1. Retrieve steel lines and hoses from shipping bag.
2. Place a container or rag under the fitting on the hitch
swing cylinder.
3. Remove existing fitting (A) from the block.
4. Remove the cap from tee fitting (C).
5. Retrieve ORFS-6 x ORB-6 connector (B) from shipping
bag and install at location (A).
NOTE:
Ensure that the direction arrow on check valve (D)
points away from tee fitting (C).
1014896
A
B
Figure 3.88: Alignment Valve Fitting
6. Remove the cap from fitting (A).
7. Remove the plug from hose (B). Install hose to
fitting (A) as shown.
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
