MacDon R113 - Page 53

214713 45 Revision A
1023782
A
B
C
D

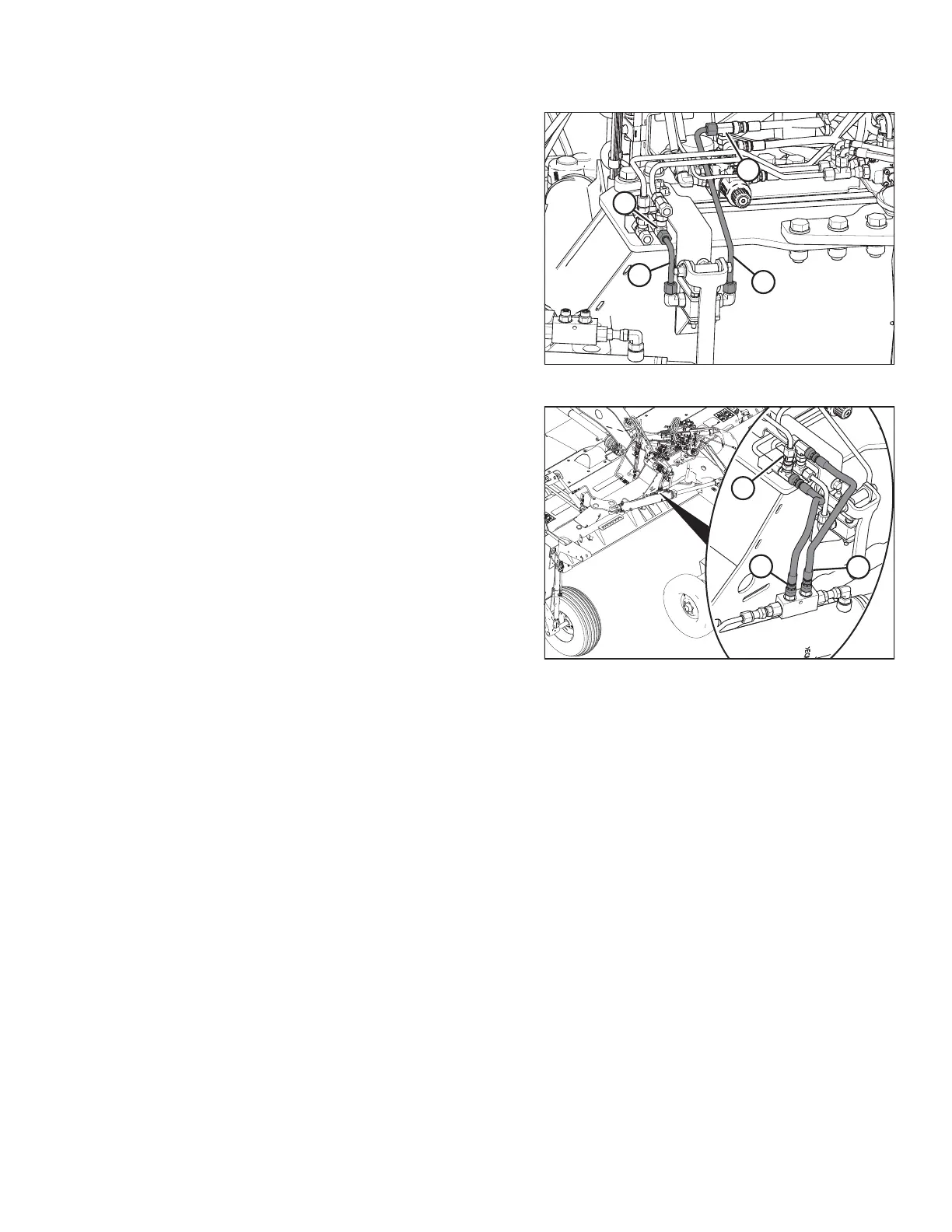

Figure 3.89: Completion Assembly Plumbing
8. Install steel line (A) from port A on the completion
assembly to tee fitting (D).
9. Install steel line (B) from port B on the completion
assembly to tee fitting (C).
1024973
A
B
C
Figure 3.90: Transport Swing Cylinder
10. Attach hose (A) to steel line connecting to port C of
transport swing control.
11. Attach hose (B) to steel line connecting to port D of
transport swing control.
12. Secure hoses (A) and (B) together with cable tie.
NOTE:
Ensure that direction arrow on check valve (C) points
toward tee fitting.
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
