214713 55 Revision A
Installing Slow Moving Vehicle (SMV) Sign

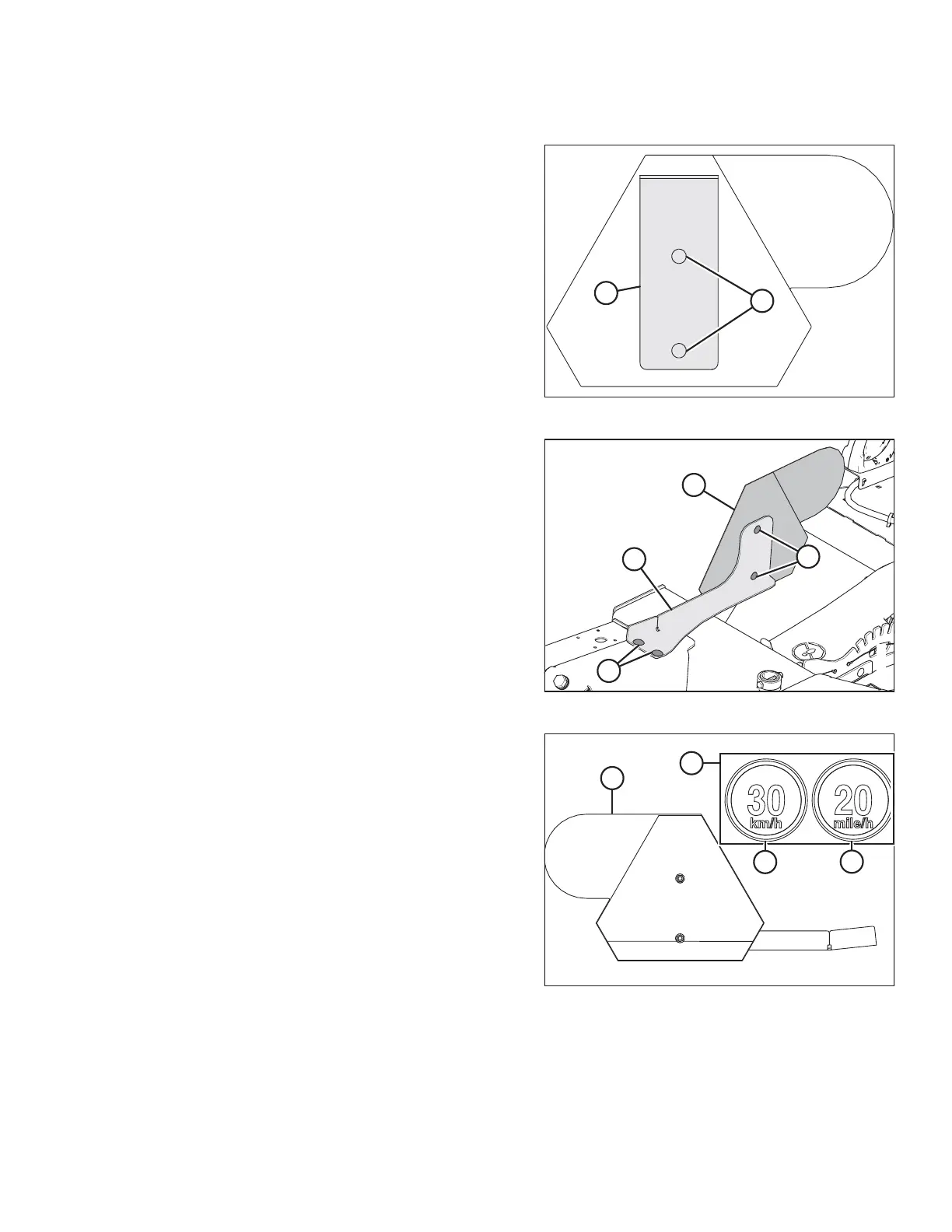

Figure 3.112: SMV Sign
1. Retrieve SMV sign that was previously removed.
2. Remove bolts (A), and discard existing bracket (B).
Retain the bolts and nuts.
Figure 3.113: SMV Sign
3. Retrieve bracket (A).
4. Attach bracket (A) to left end float spring member with
M12 bolts (B) and nuts retained from earlier step.
5. Attach sign (C) to bracket (A) and secure with two
nuts (D) and bolts.
Figure 3.114: SMV Decals
6. Remove decal bag (B) taped to the SMV bracket (A).
7. Choose the appropriate speed decal (C) or (D)
depending on region. Orient decal as shown when
installing it on the SMV bracket.
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
