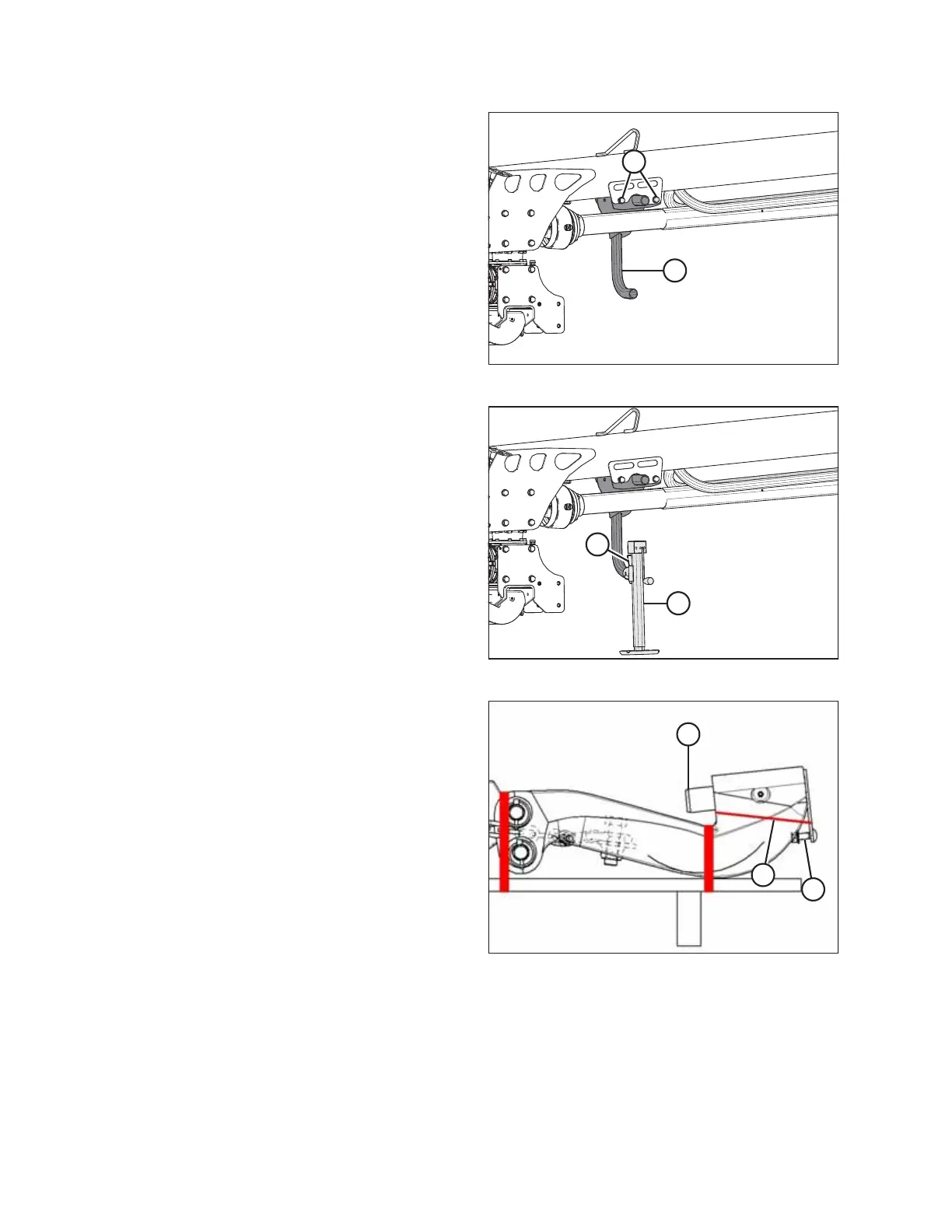

Figure 4.23: Jack Stand Support
5. Install jack support stand (A) as shown. Secure with two
M12 X 1.75 X 40 bolts (B), M12 washers and M12
center lock nuts per side. Torque hardware to 68.5 Nm
(51 lbf ft)
1026352
A
B
Figure 4.24: Jack Stand
6. Install jack (A) at front of hitch, and secure with pin (B).
7. Lower forklift until hitch is resting on hitch jack (A).
1011298
A
B
C
Figure 4.25: Hitch Casting
8. Remove shipping wire (A) that secures pin (B) in
casting. Do NOT remove other strapping.
9. Remove pin (B) from casting and remove bolt (C) and
nut from pin.
ASSEMBLING THE DISC MOWER (FACTORY-INSTALLED TRANSPORT)
