MacDon R113 - Page 115

214713 107 Revision A
1011342
A
B

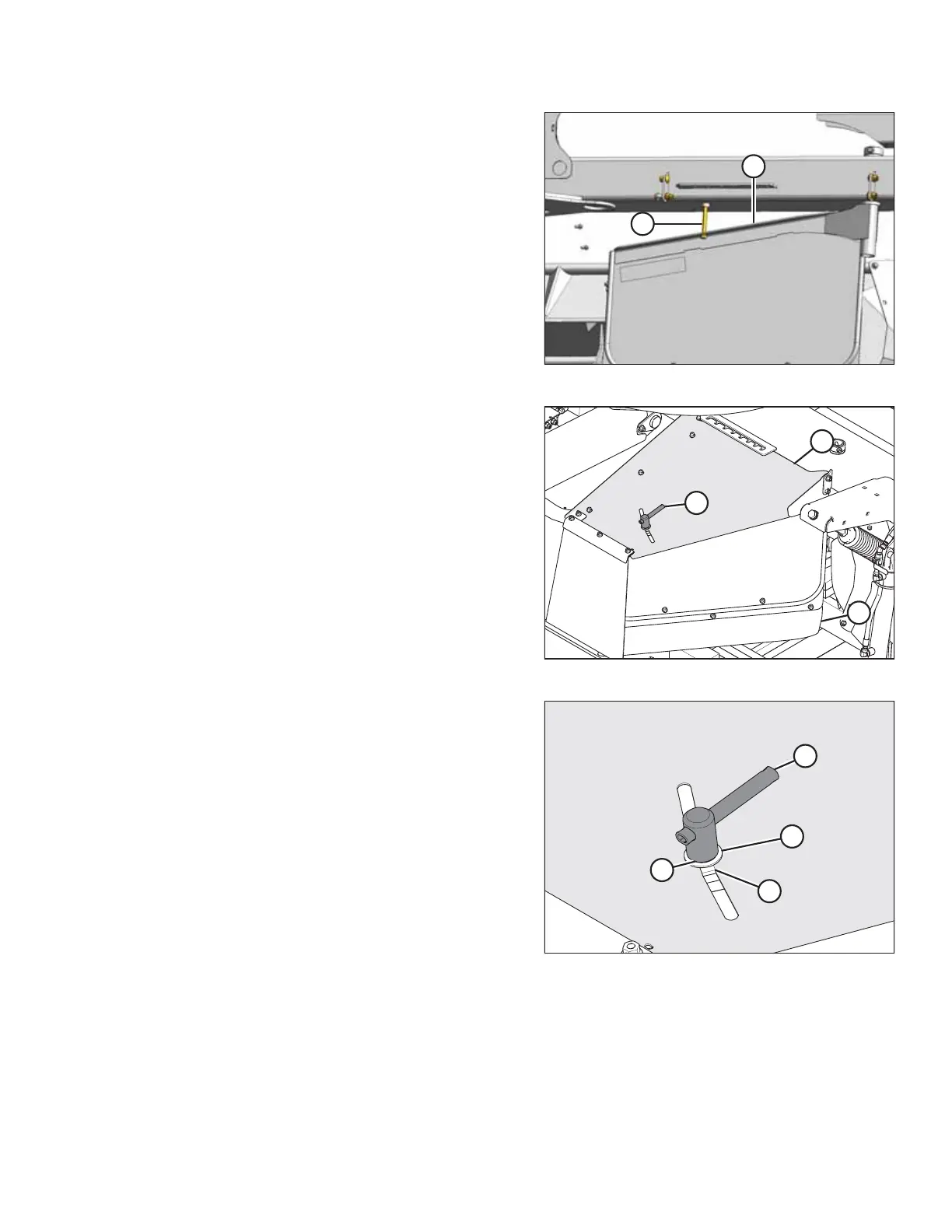

Figure 5.32: Side Deflector Assembly
10. Remove and discard bolt (A) securing deflector (B)
to frame.
1015012
A
B
C
Figure 5.33: Side Deflector Assembly
11. Remove handle (A), washers, and bolt from shield (B).
12. Swing deflector (C) under outboard shield (B) so that
handle can be installed into deflector and shield.
1015013
A
B
C
D
Figure 5.34: Deflector Adjustment
13. Install carriage bolt (A), washer (B), spring washer (C),
and handle (D) as shown.
14. Position deflector so handle (D) is approximately
centered in slot, and tighten handle.
SETTING UP THE TRACTOR
