214713 106 Revision A
1018562
A
B

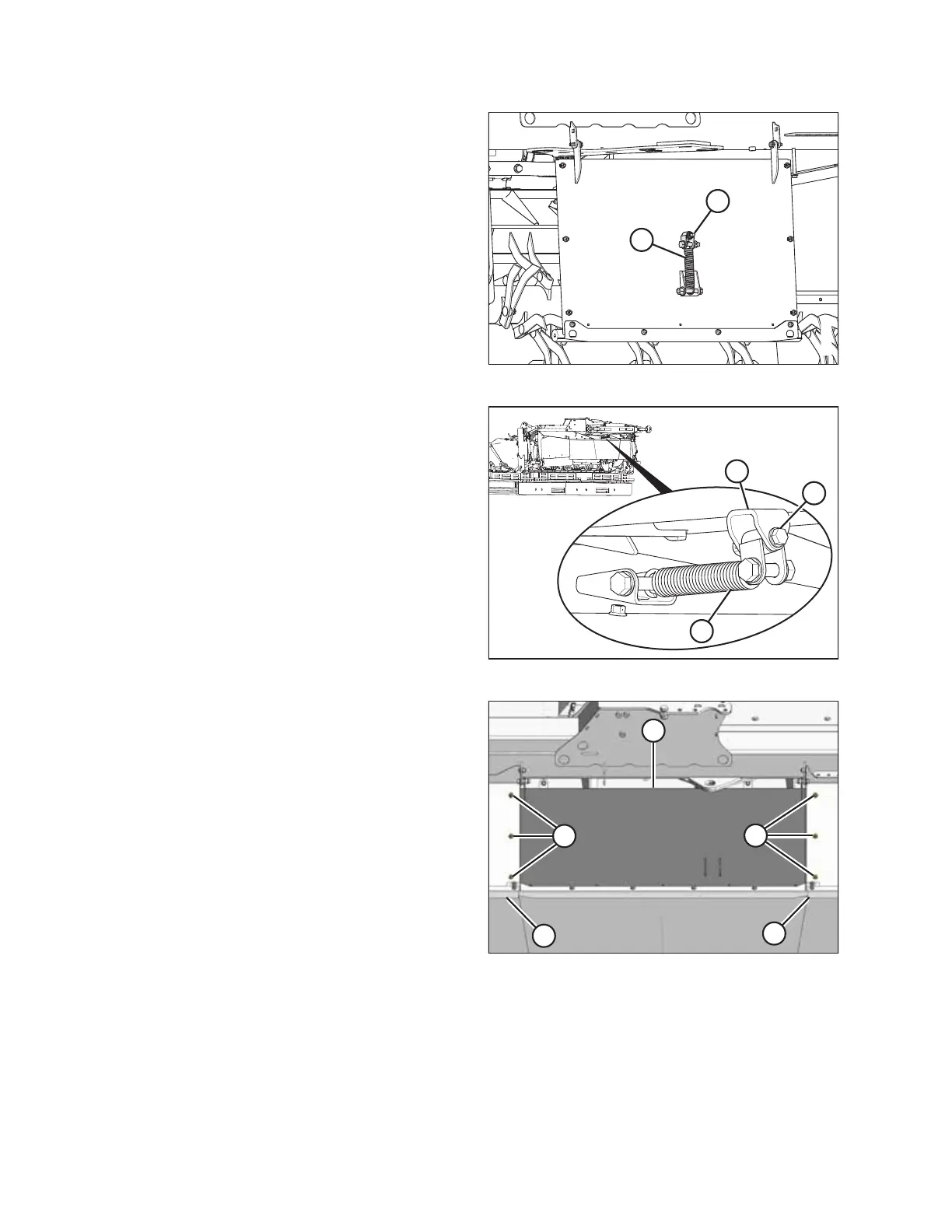

Figure 5.29: Spring on Center Shield
IMPORTANT:
For disc mowers without the Road Friendly Transport
™
system, proceed to Step 9, page 106.
7. Remove nut, bolt, and washer (A) securing the spring
assembly (B) onto the center shield. Retain nut, bolt,
and washer for attaching to transport.
1018567
A
B
C
Figure 5.30: Spring Attached to Transport
8. Lift center shield and attach spring assembly (A) to link
bracket (B) on transport with existing bolt, nut, and
washer (C) removed in Step 7, page 106.
IMPORTANT:
Do NOT bolt center shield to the left and right shields. If
the hardware to attach the center shield to side shields
is installed, remove it and discard.
1011338
A
B
B
C
C
Figure 5.31: Center Cover Assembly
IMPORTANT:
Only perform this step if NOT installing the Road
Friendly Transport
™
system.
9. Lift center shield (A) and install six M10 x 20 carriage
bolts and lock nuts (B) (three per side) to secure center
shield (A) to the outboard shields (C). Tighten bolts.
SETTING UP THE TRACTOR
