214713 13 Revision A
1013891
A
B
C

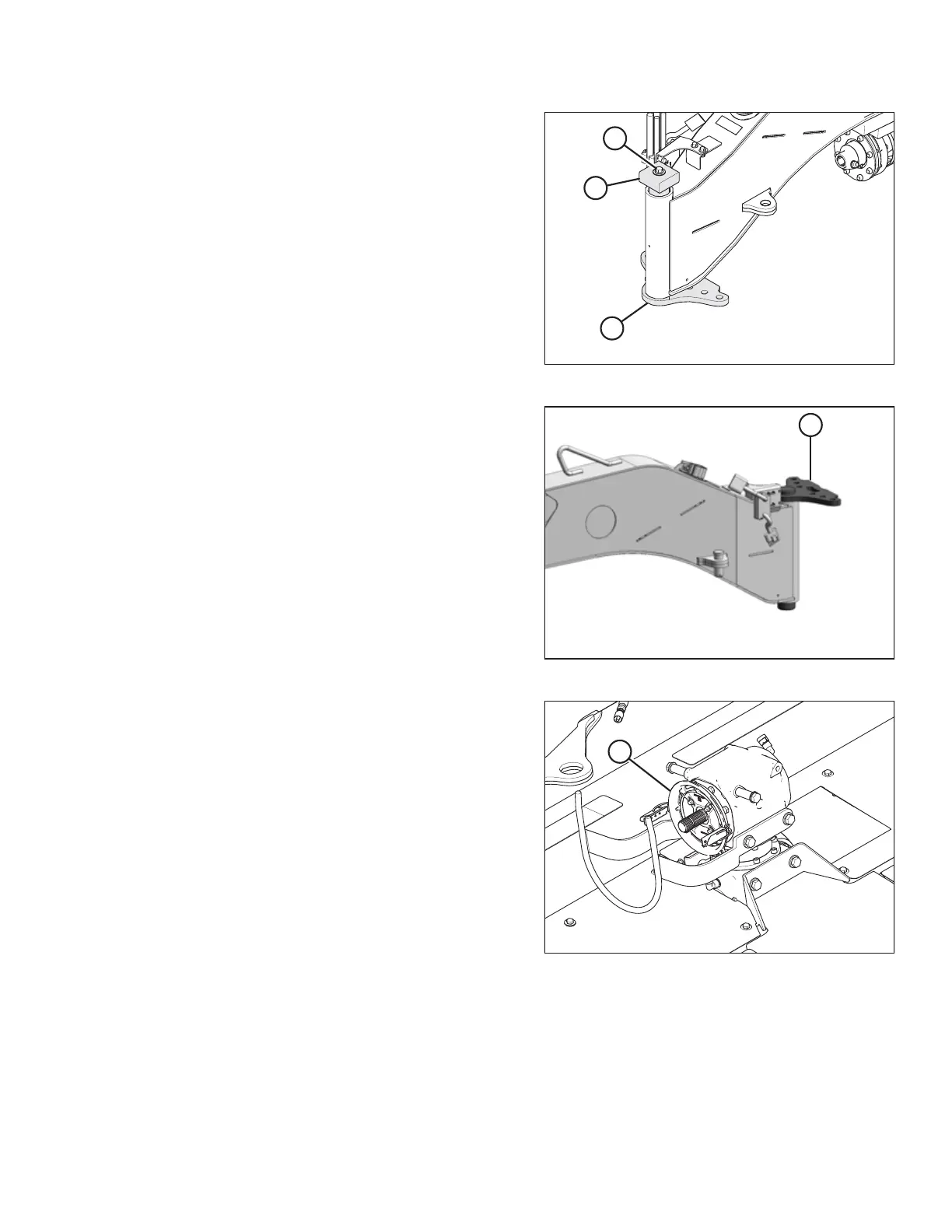

Figure 3.11: Hitch Packing
NOTE:
Hitch pin (C) is heavy. Support it appropriately before
removing bolt (A).
6. Support hitch pin (C), remove bolt (A) and wood
block (B) from top of pin, and remove hitch pin (C).
1011365
A
Figure 3.12: Hitch Pin
7. Install hitch pin (A) fully into hitch.
1015168
A
Figure 3.13: Gearbox
8. Pivot the gearbox (A) towards the right side of the
header. This will increase the clearance to the driveline
clutch when installing hitch onto carrier frame.
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
