214713 120 Revision A
1010708
A
B

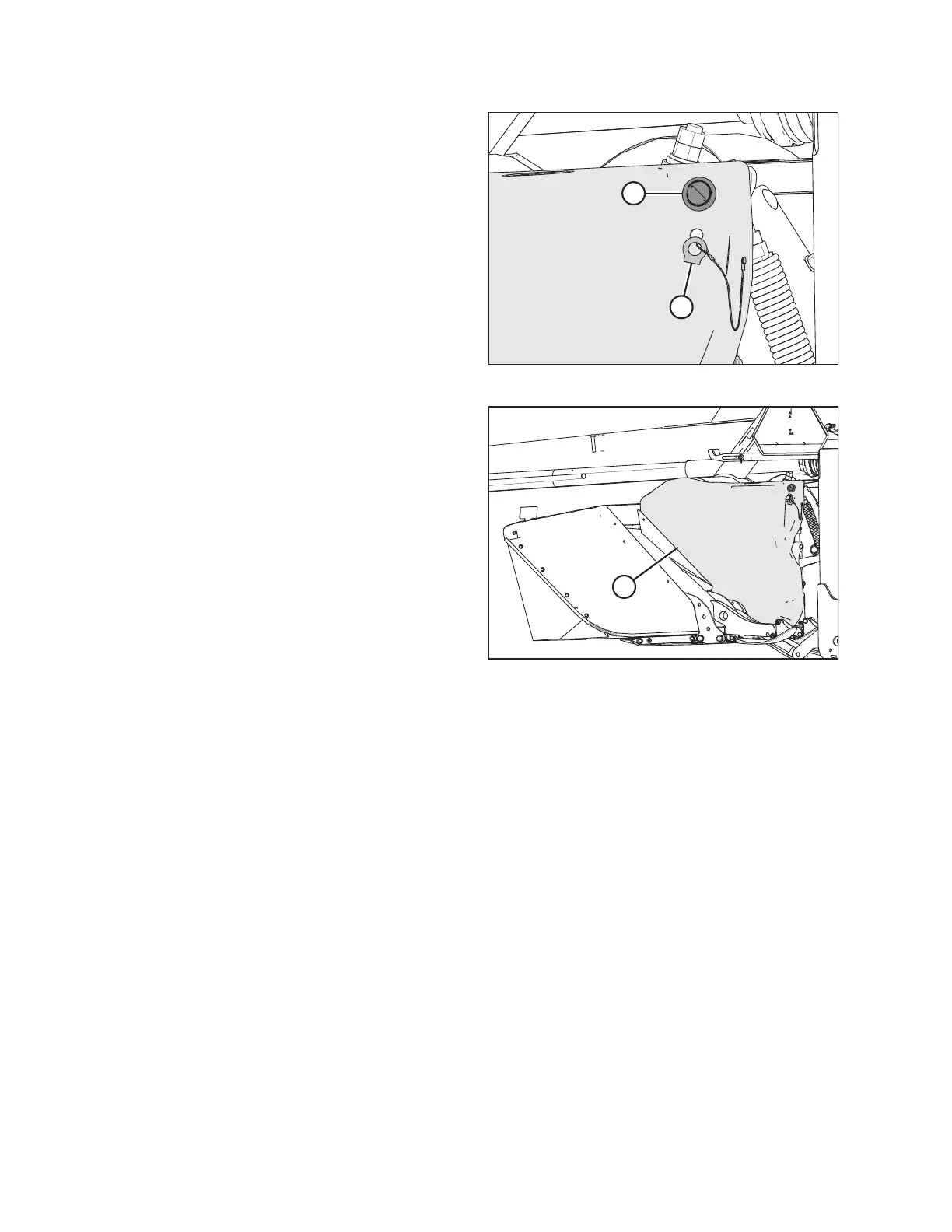

Figure 6.3: Driveshield Latch
2. Insert flat end of tool (A) into latch (B) and turn it
counterclockwise to unlock.
1010709
A
Figure 6.4: Driveshield
3. Pull top of driveshield (A) away from header to open.
NOTE:
For improved access, lift driveshield off the pins at the
base of the shield, and lay the shield on the header.
LUBRICATING THE DISC MOWER
