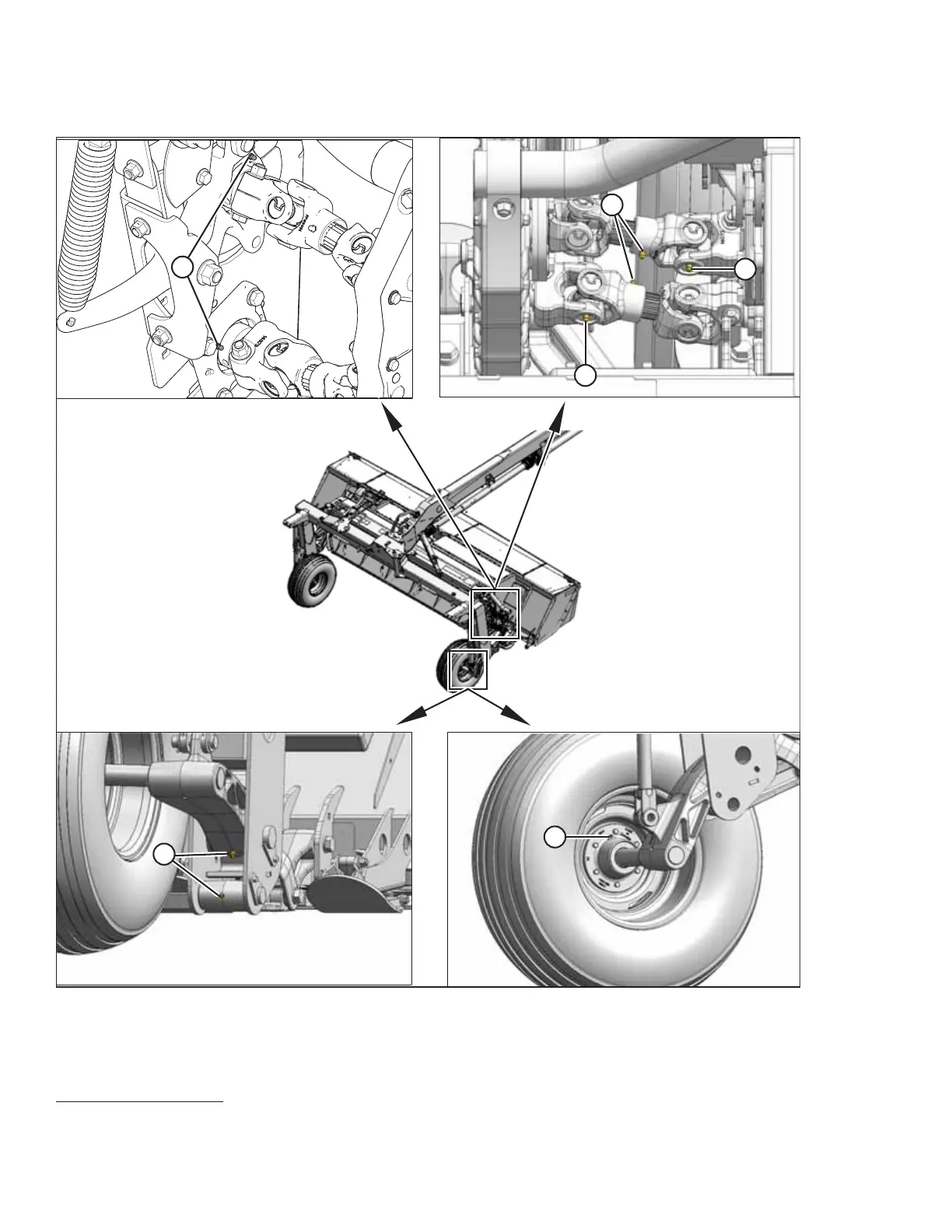

Figure 6.6 Lubrication Points
1024912
B
D
F
A
C
E
B - U-Joint, Lower Driveline (2 Places) C - Slip Joints, Conditioner Drivelines
3
E - Lift Linkage (Both Sides) F - Bearing, Field Wheel (2 Places)
A - Bearings, Roller Conditioner
D - U-Joint, Upper Driveline (2 Places)
LUBRICATING THE DISC MOWER
3. Use high-temperature, extreme-pressure (EP2) performance grease with 10% max molybdenum disulphide
(NLGI grade 2) lithium base.
