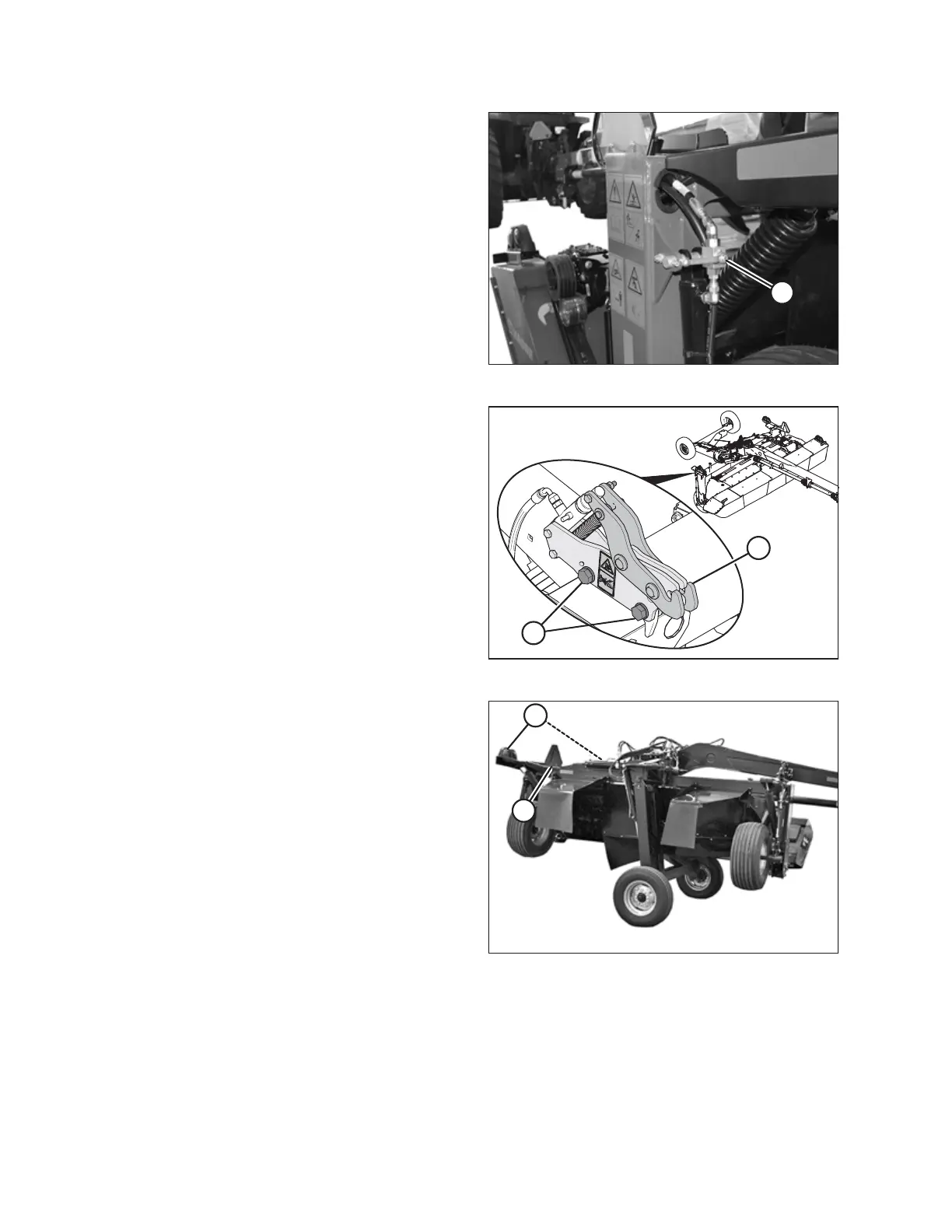

Figure 8.23: Lift Cylinder Lock-Out Valve
Lift cylinder lock-out: Close the valve by turning
handle (A) to the closed position (90 degree angle to the
hose). Repeat on opposite side.
1018452
B
A
Figure 8.24: Transport Latch
12. Torque bolts (B) on transport latch (A) to 460 Nm
(340 lbf·ft).
NOTE:
This step only needs to be completed the first time the
machine is converted from field to transport.
1023658
B
A
Figure 8.25: Transport Mode
13. Activate the hazard lights (A) on the disc mower.
Ensure all lights are working.
14. Ensure that the slow moving vehicle sign (B) is visible
from behind the disc mower.
