To install cylinder on unit WITH the Road Friendly Transport
™™
system, proceed as follows:

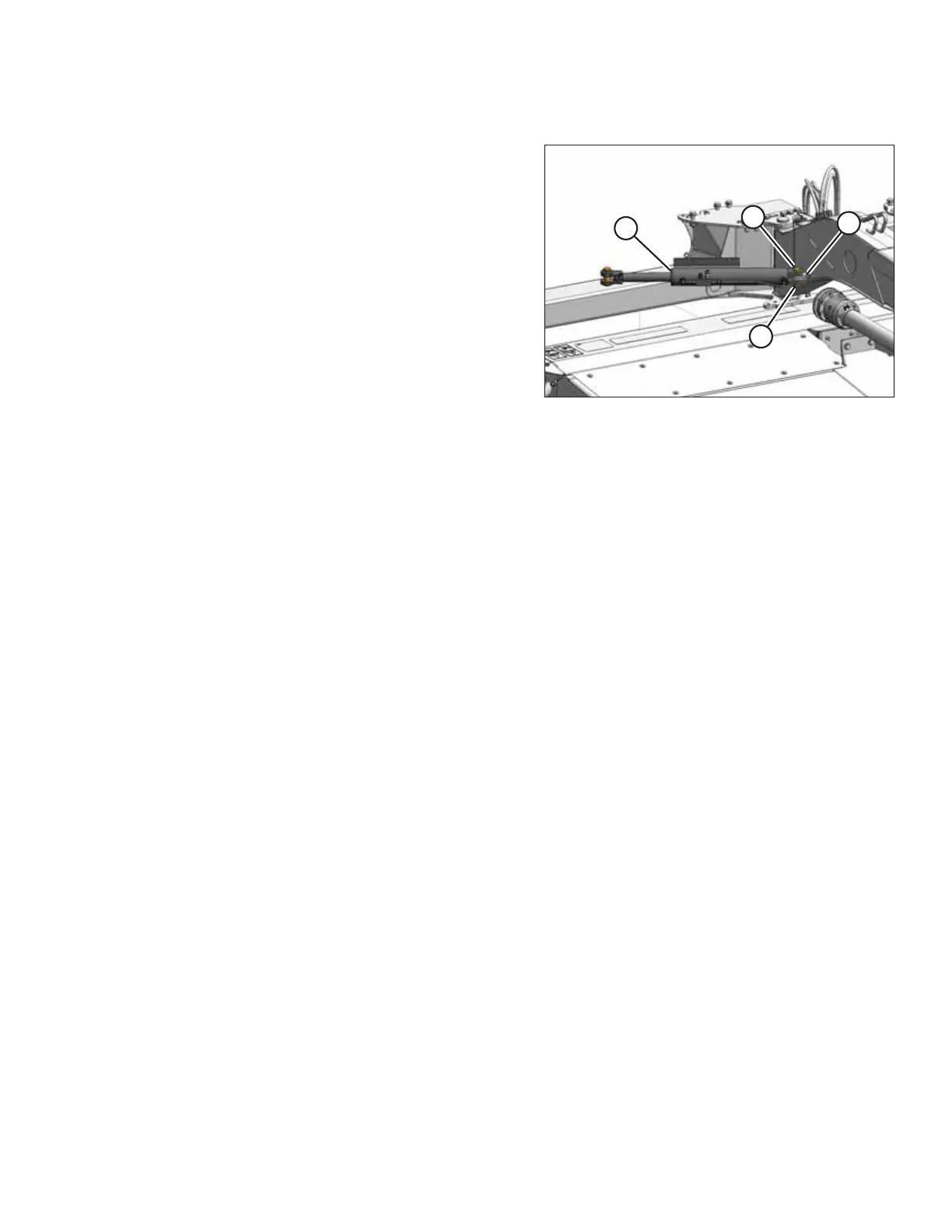

Figure 3.42: Hitch Swing Cylinder
1. Disconnect the hoses from the cylinder and cap off
openings on cylinder and hoses.
2. Reposition cylinder (A) at right side of hitch. Use pin (C)
to attach barrel end to lug (B). Secure with cotter
pin (D).
NOTE:
The clevis end of cylinder will be attached to the Road
Friendly Transport
™
system casting after the system is
primed. Refer to 5.5 Priming the Hitch Swing Cylinder,
page 102.
3. Turn the valve on the hitch swing cylinder 180 degrees,
so that fittings are pointing up.
