214713 32 Revision A
1011183
A
B

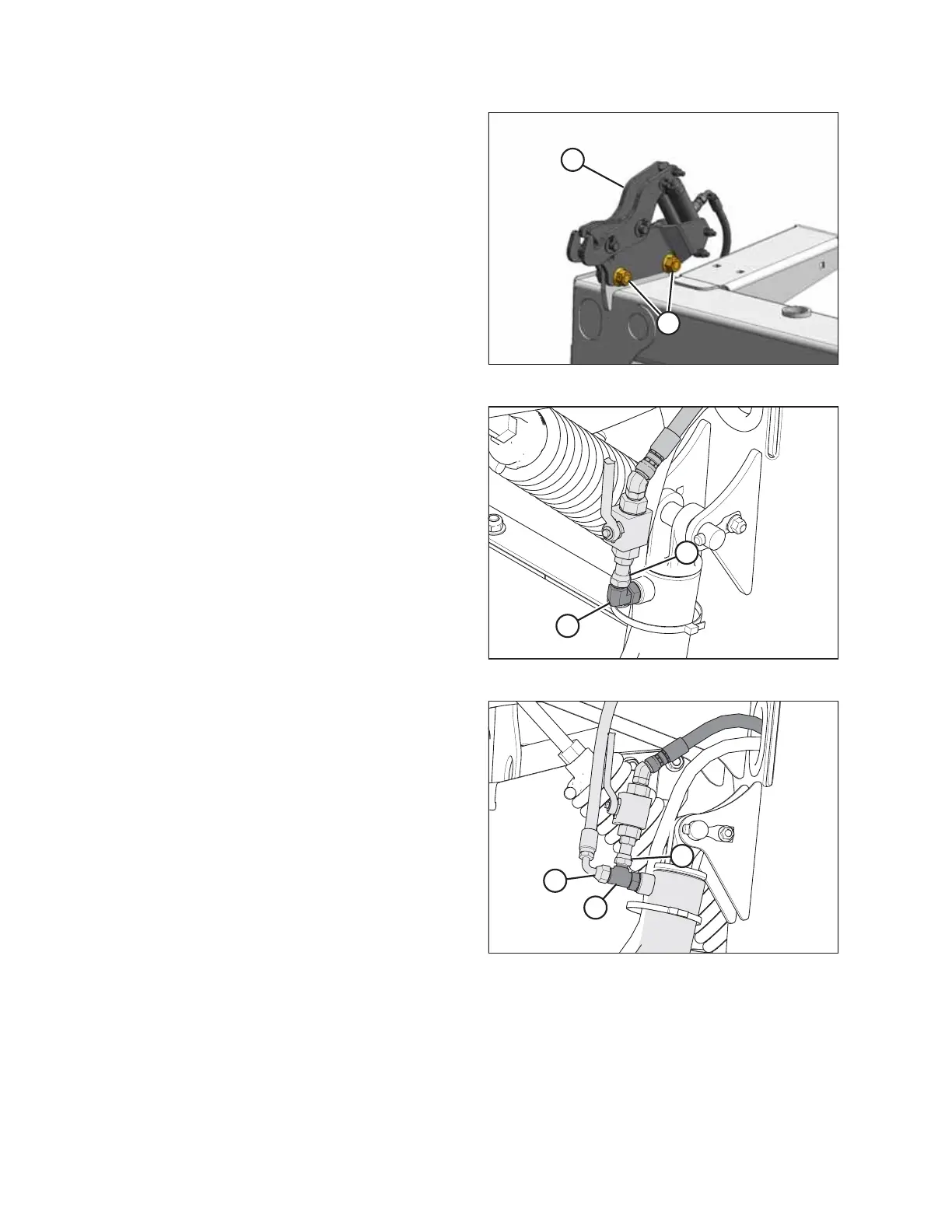

Figure 3.55: Latch Assembly
6. Install latch assembly (A) onto the carrier frame as
shown, and secure with the M20 bolts, washers, and
nuts (B) retained in Step 5, page 31.DoNOT fully
tighten bolts; adjustment of the latch assembly may be
necessary.
1023770
A
B
Figure 3.56: Latch Plumbing
7. Loosen fitting (A) on the cylinder lockout valve.
8. Remove elbow fitting (B) from the cylinder.
1023769
A
B
C
Figure 3.57: Latch Plumbing
9. Install tee fitting (A) in place of the elbow fitting.
10. Install cylinder lockout valve (B) on tee fitting (A)
as shown.
11. Attach hydraulic hose (C) from the latch assembly to
tee fitting (A) as shown.
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
